Aluminum profiles are widely used in various industries due to their lightweight, corrosion-resistant, and versatile nature. Among the many grades available, 6061 and 6063 aluminum alloys are two of the most popular choices for extruded profiles. While both alloys offer excellent mechanical properties and are suitable for a wide range of applications, they possess distinct characteristics that make each more suitable for specific uses. This article delves deep into the differences between 6061 and 6063 aluminum profiles, examining their chemical compositions, mechanical properties, manufacturing processes, applications, advantages, and limitations. By understanding these differences, engineers, architects, and manufacturers can make informed decisions when selecting the right material for their projects.
Aluminum alloys are created by adding various elements to pure aluminum, which enhances its physical and mechanical properties. The most common alloying elements include magnesium, silicon, copper, and zinc. The 6000 series, which includes both 6061 and 6063, is known for its excellent combination of strength, corrosion resistance, and extrudability. These alloys are heat-treatable, meaning their mechanical properties can be improved through specific thermal processes.
6061 aluminum is primarily composed of aluminum, magnesium, and silicon, with small amounts of copper, chromium, and other elements. The typical composition includes:
- Aluminum: Balance
- Magnesium: 0.8–1.2%
- Silicon: 0.4–0.8%
- Copper: 0.15–0.4%
- Chromium: 0.04–0.35%
This combination results in a strong, versatile alloy suitable for structural applications.
6061 aluminum profiles are renowned for their high strength, good toughness, and excellent corrosion resistance. Key mechanical properties include:
- Tensile Strength: High
- Yield Strength: High
- Hardness: Good
- Ductility: Moderate
These properties make 6061 suitable for heavy-duty structures and components that require both strength and durability.
6061 aluminum profiles are widely used in:
- Aerospace components
- Automotive parts
- Bicycle frames
- Structural frames and supports
- Marine fittings
- Heavy-duty furniture
Its strength and machinability make it a go-to material for demanding engineering applications.
6063 aluminum is also an aluminum-magnesium-silicon alloy but contains lower levels of magnesium and silicon compared to 6061. The typical composition includes:
- Aluminum: Balance
- Magnesium: 0.45–0.9%
- Silicon: 0.2–0.6%
- Iron: ≤0.35%
- Other trace elements
This composition results in a softer, more easily extrudable alloy.

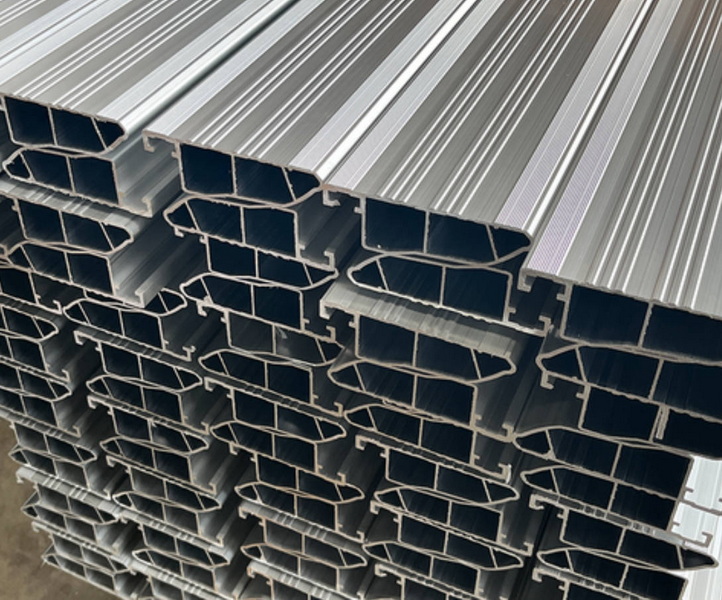

6063 aluminum profiles are known for their excellent extrudability, smooth surface finish, and moderate strength. Key mechanical properties include:
- Tensile Strength: Moderate
- Yield Strength: Lower than 6061
- Hardness: Lower than 6061
- Ductility: High
6063 is favored for applications where a high-quality surface finish and intricate shapes are important.
6063 aluminum profiles are commonly used in:
- Architectural window and door frames
- Curtain walls
- Decorative trims
- Railings and balustrades
- Light-duty structural components
Its superior surface finish and formability make it ideal for architectural and decorative uses.
The primary difference lies in their chemical makeup. 6061 contains higher levels of magnesium and silicon, along with copper and chromium, which contribute to its higher strength. In contrast, 6063 has lower magnesium and silicon content, resulting in better extrudability and surface finish but lower strength.
- Strength: 6061 is significantly stronger than 6063, making it suitable for load-bearing and structural applications.
- Ductility: 6063 is more ductile, allowing for more complex and intricate shapes during extrusion.
- Surface Finish: 6063 offers a superior surface finish, making it the preferred choice for visible architectural elements.
6063 aluminum is easier to extrude into complex shapes and thin-walled profiles due to its lower strength and higher ductility. 6061, while still extrudable, is more challenging to form into intricate designs and may require more force during the extrusion process.
Both alloys are weldable, but 6061 is generally considered easier to machine due to its higher strength and better response to cutting tools. However, 6063 can be welded and machined with proper techniques, especially when surface finish is a priority.
Both 6061 and 6063 offer good corrosion resistance, but 6063 is often considered slightly superior in this regard, especially after anodizing. This makes 6063 a popular choice for outdoor and architectural applications where appearance and longevity are important.
Both alloys can be heat-treated to enhance their mechanical properties. Common tempers include:
- T5: Cooled from an elevated temperature shaping process and then artificially aged.
- T6: Solution heat-treated and then artificially aged.
6061-T6 is the most commonly used temper for high-strength applications, while 6063-T5 and 6063-T6 are popular for architectural profiles.
Extrusion is the primary manufacturing process for both 6061 and 6063 aluminum profiles. The process involves forcing a heated aluminum billet through a die to create profiles with specific cross-sectional shapes. The choice of alloy affects the ease of extrusion, the complexity of shapes achievable, and the surface quality of the final product.
6063 is preferred for profiles requiring intricate shapes and thin walls due to its superior extrudability. 6061 is chosen for profiles where strength is more critical than shape complexity.
Both alloys can undergo various surface finishing processes, including anodizing, powder coating, and painting. 6063, with its smoother surface, produces a more aesthetically pleasing finish after anodizing, making it ideal for visible architectural elements.
6061 can also be anodized, but the finish may not be as smooth or uniform as 6063, especially for profiles with complex shapes.
6061 aluminum is easier to machine and fabricate due to its higher strength and better response to cutting tools. It is commonly used for components that require extensive machining, drilling, or tapping.
6063 can also be machined, but its lower strength and higher ductility may require adjustments in tooling and techniques to achieve the desired results.
- Aerospace Industry: Used for aircraft fittings, structural components, and engine parts due to its high strength-to-weight ratio.
- Automotive Industry: Employed in chassis, frames, and suspension components where strength and durability are essential.
- Marine Industry: Utilized for boat hulls, masts, and other components exposed to harsh environments.
- Construction: Used for load-bearing structures, scaffolding, and support beams.
- Architecture: Widely used for window and door frames, curtain walls, and decorative trims due to its superior surface finish.
- Interior Design: Employed in furniture, partitions, and decorative elements where appearance is important.
- Transportation: Used for lightweight structural components in buses, trains, and trailers.
- Consumer Goods: Found in products like picture frames, display racks, and shelving.
Advantages:
- High strength and durability
- Good machinability and weldability
- Suitable for structural and load-bearing applications
Limitations:
- More difficult to extrude into complex shapes
- Surface finish may not be as smooth as 6063
- Slightly higher cost due to alloying elements
Advantages:
- Excellent extrudability and formability
- Superior surface finish, ideal for anodizing
- Good corrosion resistance
Limitations:
- Lower strength compared to 6061
- Not suitable for heavy-duty structural applications
- May require additional support in load-bearing designs

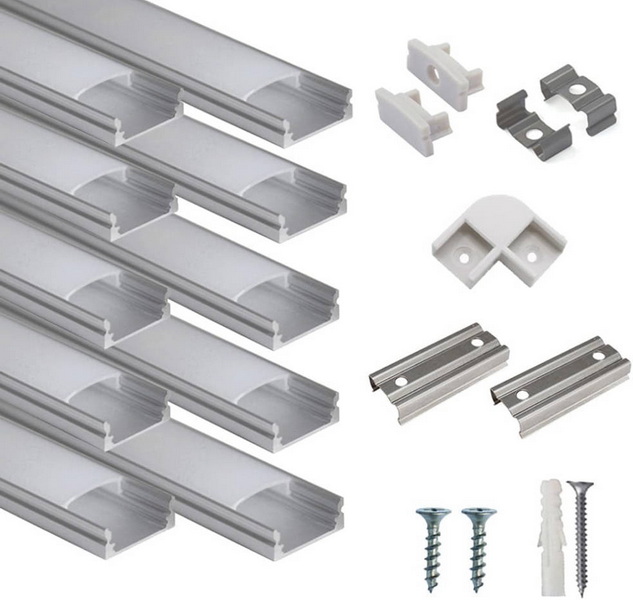

The choice between 6061 and 6063 aluminum profiles depends on the specific requirements of the application. Consider the following factors:
- Strength Requirements: If the profile needs to bear heavy loads or withstand significant stress, 6061 is the better choice.
- Surface Finish: For applications where appearance and surface quality are paramount, 6063 is preferred.
- Complexity of Shape: If the design involves intricate shapes or thin walls, 6063 offers superior extrudability.
- Machining Needs: For components requiring extensive machining, 6061 provides better results.
- Cost Considerations: 6063 is generally less expensive due to its simpler composition and easier processing.
Both 6061 and 6063 aluminum alloys are fully recyclable, making them environmentally friendly choices for sustainable construction and manufacturing. Recycling aluminum requires significantly less energy than producing new aluminum from ore, reducing the overall environmental impact.
Advancements in alloy development and extrusion technology continue to expand the possibilities for aluminum profiles. New heat treatment methods, improved die designs, and enhanced surface finishing techniques are enabling the creation of profiles with even better performance characteristics. As industries demand lighter, stronger, and more aesthetically pleasing materials, both 6061 and 6063 aluminum profiles will remain at the forefront of innovation.
Both 6061 and 6063 aluminum profiles are essential materials in modern engineering and construction. While they share some similarities, their differences in chemical composition, mechanical properties, extrudability, and surface finish make each alloy uniquely suited to specific applications. 6061 is the preferred choice for high-strength, load-bearing structures, while 6063 excels in applications where appearance and intricate shapes are crucial. By understanding these differences, professionals can select the right material to ensure the success and longevity of their projects.
6061 aluminum contains higher levels of magnesium and silicon, along with copper and chromium, resulting in greater strength and durability. 6063 has lower magnesium and silicon content, making it more suitable for applications requiring excellent surface finish and extrudability.
6063 is generally preferred for architectural applications due to its superior surface finish, ease of extrusion into complex shapes, and excellent anodizing properties. It is widely used for window frames, door frames, and decorative trims.
Both alloys can be welded and machined, but 6061 is known for better machinability and weldability, especially for structural components. 6063 can also be processed effectively, particularly when surface appearance is a priority.
6061 aluminum profiles have significantly higher tensile and yield strength compared to 6063. This makes 6061 suitable for heavy-duty, load-bearing applications, while 6063 is better for lightweight and decorative uses.
Yes, both alloys are fully recyclable and contribute to sustainable manufacturing practices. Recycling aluminum saves energy and reduces environmental impact, making both 6061 and 6063 excellent choices for eco-conscious projects.
