Aluminum extrusion profiles are versatile and widely used components in various industries, including construction, automotive, electronics, and more. These profiles are created through a process known as aluminum extrusion, which involves forcing aluminum alloy through a die to achieve a specific cross-sectional shape. In this article, we will delve into the details of aluminum extrusion profiles, their applications, and the manufacturing process.

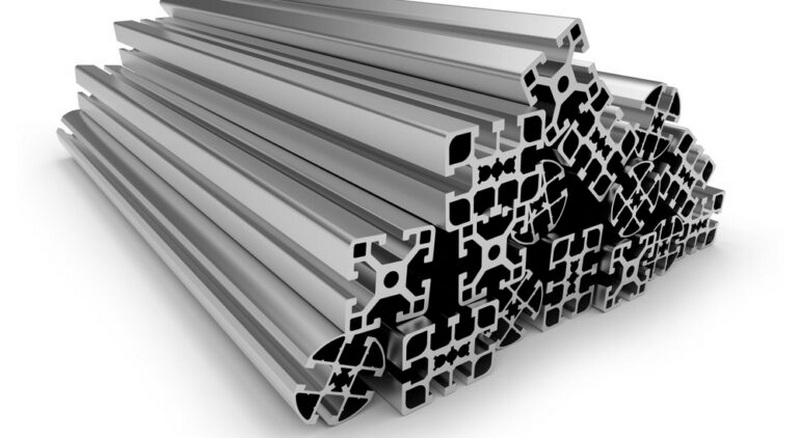

Aluminum extrusion profiles are made from aluminum alloys, which are chosen for their strength, durability, and lightweight properties. These profiles can be produced in a wide range of shapes and sizes, making them ideal for diverse applications such as window frames, door handles, heat sinks, and structural components in vehicles.
Aluminum extrusion profiles are integral to many industries due to their unique properties:
- Construction: Used in windows, doors, and architectural features due to their corrosion resistance and aesthetic appeal.
- Automotive: Employed in vehicle frames and components for their strength-to-weight ratio.
- Electronics: Utilized in heat sinks and electronic enclosures for their thermal conductivity.
- Industrial Equipment: Found in machinery and robotics for their durability and resistance to wear.
The aluminum extrusion process involves several key stages:
1. Billet Preparation: A cylindrical block of aluminum alloy is heated to make it malleable.
2. Extrusion: The heated billet is forced through a die under high pressure to form the desired shape.
3. Quenching: The extruded profile is cooled rapidly to enhance its mechanical properties.
4. Aging: The profile is heat-treated to increase strength and hardness.
5. Surface Treatment: Processes like anodizing or painting are applied to enhance appearance and durability.
Engineers and designers collaborate to create the technical specifications for the desired profile shape. This stage involves careful consideration of the profile's intended application, including factors such as load-bearing capacity, thermal requirements, and aesthetic considerations.
The aluminum billet is heated to around 500°C to make it pliable for extrusion. The heating process is crucial as it ensures the aluminum is soft enough to be pushed through the die without cracking.
The billet is loaded into an extrusion press and forced through a die under high pressure, emerging as a fully formed profile. The die determines the shape of the extruded profile, allowing for a wide range of complex shapes to be produced.
The extruded profile is cooled using water or air to stabilize its dimensions and improve mechanical properties. Quenching helps prevent distortion and ensures the profile retains its shape.
The profile is heat-treated to enhance strength and hardness, making it suitable for various applications. This process involves heating the profile to specific temperatures to precipitate out strengthening phases within the aluminum alloy.
The profile is straightened and cut to the required length. Straightening ensures the profile is perfectly aligned, while cutting allows it to be tailored to specific project needs.
Processes like anodizing, powder coating, or painting are applied to enhance appearance and durability. These treatments provide corrosion resistance and can improve the aesthetic appeal of the profiles.
One of the significant advantages of aluminum extrusion profiles is their ease of customization. Due to the flexibility of aluminum alloys, profiles can be created in complex shapes that are not feasible with other metals. This versatility allows for the production of both standard and custom profiles, catering to specific needs across different industries.

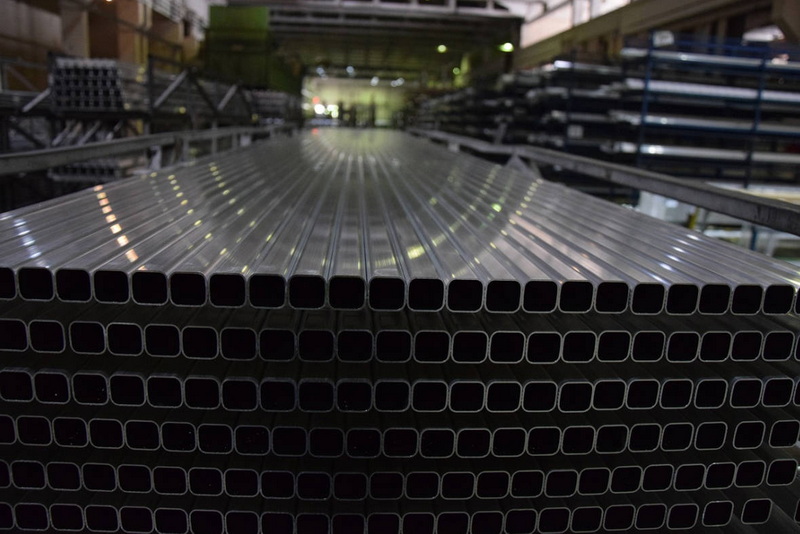

- Hollow Profiles: Used in tubing and piping applications.
- Complex Cross-Sections: Employed in architectural features and machinery parts.
- Thin-Walled Profiles: Utilized in lightweight structures and electronic enclosures.
Aluminum extrusion profiles are also recognized for their sustainability. Aluminum is highly recyclable, which means that aluminum extrusion profiles can be recycled at the end of their life cycle, reducing waste and conserving natural resources. This recyclability is a significant advantage in industries striving for environmental sustainability.
- Recyclability: Aluminum can be recycled repeatedly without losing its properties.
- Energy Efficiency: Recycling aluminum requires less energy than producing new aluminum from raw materials.
- Reduced Waste: The ability to recycle aluminum profiles minimizes landfill waste and supports a circular economy.
Recent innovations in aluminum extrusion technology have further expanded the capabilities of these profiles. Advances in die design and extrusion machinery have enabled the production of more complex shapes and improved efficiency in the manufacturing process.
- Complex Geometries: New die designs allow for the creation of profiles with intricate shapes and features.
- Multi-Port Dies: These dies enable the simultaneous extrusion of multiple profiles, increasing production efficiency.
- Higher Press Capacities: Modern presses can handle larger billets, allowing for longer profiles to be produced.
- Automated Systems: Increased automation in the extrusion process improves consistency and reduces labor costs.
Aluminum extrusion profiles are a cornerstone of modern manufacturing, offering a blend of strength, durability, and versatility. Their applications span multiple industries, from construction to automotive and electronics. Understanding the aluminum extrusion process and the customization options available can help businesses and individuals leverage these profiles to meet specific needs and enhance product performance.
Aluminum extrusion profiles are primarily made from aluminum alloys, which are chosen for their strength, lightweight properties, and corrosion resistance.
Customization of aluminum extrusion profiles is achieved by designing specific dies that allow for the creation of unique shapes and cross-sections. This process involves collaboration between engineers and designers to meet specific application requirements.
Aluminum extrusion profiles are widely used in construction (windows, doors), automotive (vehicle frames), electronics (heat sinks), and industrial equipment (machinery parts).
Quenching is used to rapidly cool the extruded aluminum profile, enhancing its mechanical properties and ensuring dimensional stability.
Surface treatments such as anodizing, powder coating, or painting are applied to enhance the appearance and durability of aluminum extrusion profiles, providing corrosion resistance and aesthetic appeal.
