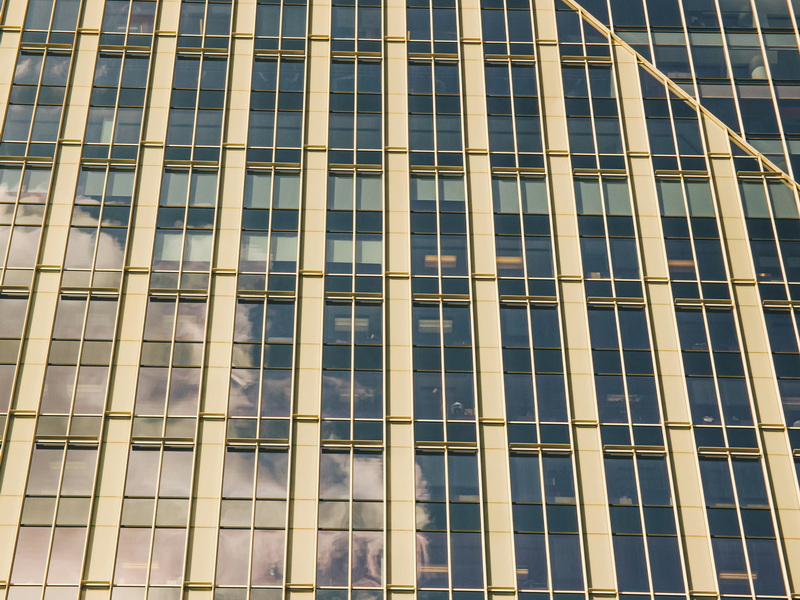

Aluminum window frames are a cornerstone of modern architecture, prized for their strength, durability, and sleek aesthetics. But how are these precision-engineered extrusions actually made? This comprehensive guide explores the entire manufacturing journey, from raw material selection to the final finishing touches, delving into the technology, quality control, and innovation that drive the aluminum window frame industry.
Aluminum extrusion is a manufacturing process that transforms solid aluminum alloy billets into complex, continuous profiles with precise cross-sectional shapes. The process relies on forcing heated aluminum through a specially designed die, creating long, uniform sections that can be cut and fabricated into window frames and other products[2][3][4][15].
Aluminum is favored for window frames due to its:
- Lightweight nature
- Excellent corrosion resistance
- High strength-to-weight ratio
- Versatility in design
- Recyclability
Aluminum alloys, often containing elements like magnesium, silicon, and copper, are chosen to enhance these properties further[13].
The process begins with the selection of high-quality aluminum alloy billets. These billets are cylindrical logs or ingots, typically composed of aluminum and alloying elements such as silicon, magnesium, manganese, and copper. These elements are precisely blended to achieve the desired mechanical and chemical properties, including strength, ductility, and corrosion resistance[13].
A die is a hardened steel tool that shapes the aluminum as it is extruded. The die's cross-sectional opening determines the profile of the final extrusion. For window frames, dies are engineered to create intricate shapes with internal chambers for strength, insulation, and hardware integration[4][9].
Before extrusion, the die is preheated to around 450–500°C. This preheating ensures smooth metal flow, minimizes wear, and extends the die's lifespan[2][9].
Aluminum billets are cut to length and preheated in ovens to a temperature between 400–500°C (750–930°F). This step makes the aluminum malleable enough for extrusion but not molten, facilitating smooth shaping through the die[2][3][9][15].
- The preheated billet is loaded into the extrusion press container.
- A hydraulic ram applies immense pressure (up to 15,000 tons), forcing the billet through the stationary die[2][14].
- As the aluminum passes through, it takes on the die's shape, emerging as a continuous profile.
- The die moves toward the stationary billet.
- This method reduces friction, improves temperature control, and is used for applications requiring high precision and surface finish[2][4][11].
Note: For hollow window frame profiles, a "bridge" or "porthole" die is used, splitting the metal stream and welding it back together under pressure to form internal cavities[10].
After extrusion, the hot profile is rapidly cooled (quenched) using water baths, sprays, or air fans. Quenching locks in the mechanical properties and helps harden the aluminum[2][3][9].
The extruded profile is guided along a runout table and allowed to cool to room temperature[9][8].
Extruded profiles may develop twists or bends during cooling. To correct this, they are mechanically stretched-gripped at both ends and pulled until perfectly straight and aligned with required tolerances. This step is crucial for dimensional accuracy[2][7][9].
Once straightened, the profiles are cut to customer-specified lengths, typically ranging from 8 to 21 feet. Precision cutting ensures the profiles are ready for further processing or assembly[2][9].
After extrusion, profiles undergo various finishing and fabrication steps:
- Surface Treatments: Anodizing, powder coating, or painting to enhance appearance and corrosion resistance[3][5][13][16].
- Machining: Drilling, punching, and cutting for hardware integration and assembly[3][5].
- Thermal Break Insertion: For energy-efficient frames, a non-metallic thermal barrier is inserted to reduce heat transfer[16].
- Assembly: Profiles are joined using screws, rivets, or welding to form complete window frames. Tight connections are essential to prevent air or water leakage[1].
- Quality Inspection: Dimensional checks, appearance inspections, and corrosion resistance tests ensure high standards[1][5].
Maintaining quality is paramount in aluminum window frame manufacturing. Key inspection methods include:
- Dimensional measurement: Ensures profiles meet tight tolerances.
- Surface inspection: Checks for defects like scratches, dents, or discoloration.
- Corrosion resistance testing: Verifies the effectiveness of surface treatments.
- Mechanical testing: Assesses strength, hardness, and durability[1][5].
Many manufacturers adhere to international standards (e.g., ISO 9001:2015) and implement custom gauging and computer-aided design/manufacturing (CAD/CAM) for precision[5].
Despite advanced technology, manufacturers face challenges such as:
- Extrusion Deformation: Irregular shapes or cracks due to insufficient material properties or poor press operation. Solutions include optimizing temperature, pressure, and die design[6].
- Thermal Cracking: Caused by excessive heat or uneven temperature distribution. Solutions involve better temperature control and alloy selection[6].
- Anisotropy: Directional strength variation from uneven metal flow. Addressed by optimizing die design and extrusion conditions[6].
- Operational Faults: Issues like poor lubrication, uneven feeding, or equipment malfunction require regular maintenance and process optimization[12].
Aluminum window frame extrusion is highly adaptable. Manufacturers can create custom profiles tailored to architectural or performance requirements. The process involves:
- Reviewing customer drawings or specifications.
- Designing and testing custom dies.
- Producing samples for approval.
- Adjusting dies as needed.
- Selecting surface finishes (anodizing, powder coating, PVDF, etc.).
- Packing and shipping with care to prevent damage[13].
Aluminum is one of the most recyclable materials. The extrusion process itself is energy-efficient, and scrap aluminum can be remelted and reused without loss of quality. This makes aluminum window frames a sustainable choice for green building projects.
The manufacturing of aluminum window frame extrusions is a sophisticated, multi-step process that transforms raw aluminum into high-performance architectural components. Through precise control of temperature, pressure, and die design, manufacturers produce profiles that are strong, lightweight, and corrosion-resistant. Advanced finishing techniques, rigorous quality control, and ongoing innovation ensure that aluminum window frames meet the evolving needs of modern construction.
Whether for residential, commercial, or industrial applications, aluminum window frames continue to set the standard for durability, efficiency, and design flexibility.
There are two primary types: direct (forward) extrusion and indirect (backward) extrusion. Direct extrusion is most common for window frames, where the billet is pushed through a stationary die. Indirect extrusion, where the die moves toward the stationary billet, is used for high-precision applications due to better temperature control and surface finish[2][4][11].
Hollow profiles are produced using a "bridge" or "porthole" die, which splits the aluminum stream and welds it back together under pressure around a mandrel, creating internal cavities essential for strength and insulation[10].
Common finishes include anodizing (for corrosion resistance and color), powder coating (for durability and aesthetics), and painting. These finishes enhance both the appearance and performance of the frames[3][5][13][16].
Quality is maintained through dimensional measurement, surface inspection, corrosion resistance testing, and mechanical testing. Many manufacturers use custom gauging and adhere to international standards like ISO 9001:2015[1][5].
Yes. Manufacturers can design custom dies based on customer specifications, produce prototypes, adjust the design as needed, and apply various surface finishes to meet unique architectural or performance requirements[13][5].
