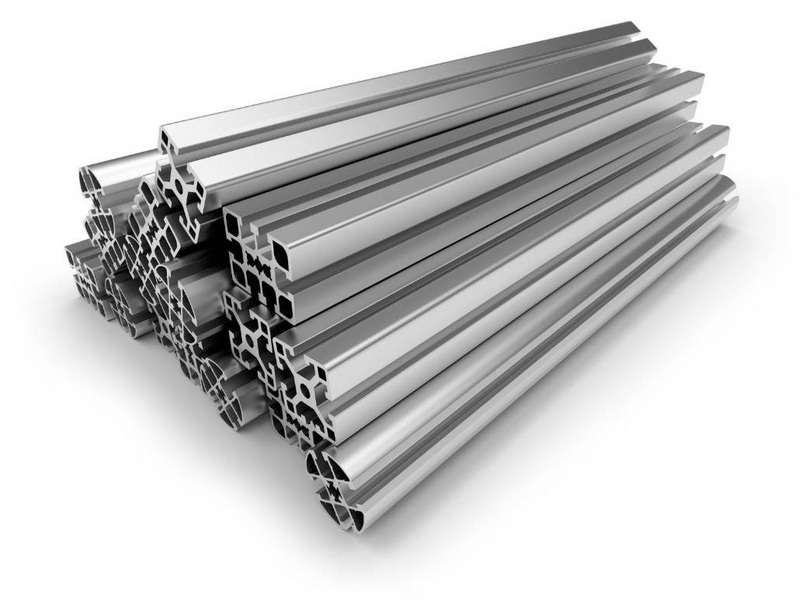

Aluminum profile extrusion is a versatile manufacturing process used to create a wide range of aluminum profiles with complex cross-sectional shapes. This process involves heating and forcing aluminum alloy through a die, which shapes the metal into the desired profile. The resulting products are widely used in various industries, including construction, automotive, aerospace, and consumer goods, due to their strength, lightweight nature, and corrosion resistance.

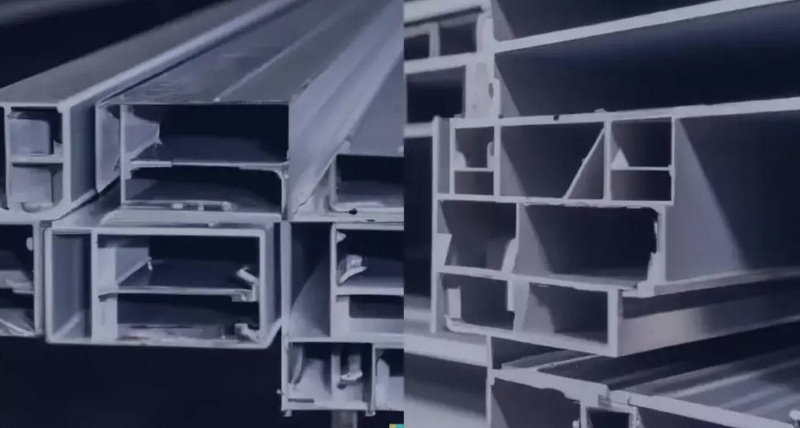

Aluminum profile extrusion is a commercial manufacturing method that transforms aluminum into elongated parts with uniform cross-sections. These profiles can be solid, hollow, or semi-hollow, depending on the design requirements. The process begins with the design of the aluminum profile, where engineers and designers work closely with clients to create the technical specifications. This is followed by billet preparation, where a cylindrical block of aluminum alloy is heated to make it more malleable and easier to extrude.
1. Billet Preparation: The aluminum billet is heated in a furnace to a temperature between 750°F and 925°F, making it soft and pliable.
2. Extrusion: The heated billet is then placed into an extrusion press, where a hydraulic ram applies pressure to push the billet through a die. The die determines the final shape of the aluminum profile.
3. Quenching: After extrusion, the profile is rapidly cooled using air or water to improve its mechanical properties and ensure dimensional stability.
4. Stretching and Straightening: The extruded profile is stretched to correct any distortions and ensure straightness.
5. Cutting to Length: The profiles are cut into the required lengths using saws or shearing machines.
6. Heat Treatment: The profiles may undergo heat treatment to achieve specific tempers, such as T5 or T6, which enhance their strength and hardness.
7. Surface Treatment: Surface treatments like anodizing or powder coating can be applied to enhance corrosion resistance and aesthetic appeal.
Aluminum profile extrusions are widely used across various industries due to their versatility and beneficial properties:
- Construction Industry: Used in window and door frames, curtain walls, balcony railings, and roofing structures due to their strength, durability, and resistance to corrosion.
- Automotive Industry: Utilized for chassis components, suspension parts, and other load-bearing applications due to their lightweight and high strength.
- Aerospace Industry: Employed in aircraft structures due to their high strength-to-weight ratio.
- Industrial Automation: Used for frames, workstations, and machine guarding systems.
- Consumer Goods: Found in furniture frames, bicycle frames, and other consumer products where durability and lightness are important.
In recent years, aluminum profile extrusions have seen increased use in advanced applications such as:
- Renewable Energy Systems: Used in solar panel frames and wind turbine components due to their durability and resistance to environmental factors.
- Medical Equipment: Utilized in medical devices and hospital furniture due to their ease of cleaning and resistance to corrosion.
- Transportation Infrastructure: Employed in railings, pedestrian bridges, and other public infrastructure projects.
- Electronics and IT: Used in server racks, cable management systems, and other electronic enclosures due to their durability and thermal management capabilities.
The aluminum profile extrusion process offers several advantages:
- High Precision and Surface Quality: The process allows for the creation of profiles with high precision and surface quality, although it may not match the accuracy of CNC machining.
- Increased Strength: Products made through extrusion have increased strength due to the homogeneous structure formed under pressure.
- Low Material Loss: The process minimizes material waste, making it efficient.
- Energy Efficiency: Aluminum extrusion can be more energy-efficient compared to other metalworking processes.
- Cost-Effective: Large quantities can be produced at a lower cost per unit compared to other manufacturing methods.
- Design Flexibility: Allows for the creation of complex shapes that would be difficult or impossible to achieve with other manufacturing techniques.
While aluminum profile extrusion is highly versatile, it also presents some challenges:
- Extrudability: Some aluminum alloys have lower extrudability, which can affect tolerance and shape flexibility.
- Fatigue Life: Aluminum does not have infinite fatigue life in cyclic loading applications, requiring careful alloy selection.
- Design Limitations: Bending extrusions into curved shapes requires careful design and process selection.
- Material Selection: The choice of aluminum alloy can significantly impact the final product's properties and performance.
- Tooling Costs: The cost of creating custom dies can be high, making small batch production less economical.
As technology advances, there is a growing focus on improving the sustainability and efficiency of aluminum profile extrusion. This includes:
- Recycling and Sustainability: Efforts to increase the use of recycled aluminum in extrusions to reduce environmental impact.
- Advanced Materials: Research into new aluminum alloys with enhanced properties, such as higher strength or improved corrosion resistance.
- Digitalization: Integration of digital tools and AI in the design and manufacturing process to optimize production efficiency and product quality.
- 3D Printing Integration: Exploring the integration of 3D printing techniques to create complex geometries that complement extruded profiles.
Aluminum profile extrusion is a powerful manufacturing technique that enables the creation of complex shapes with high precision and strength. Its applications span multiple industries, benefiting from the lightweight, corrosion-resistant, and durable nature of aluminum. As technology advances, the use of aluminum extrusions is expected to expand into new fields, further leveraging its advantages.
The typical temperature range for heating aluminum billets is between 750°F and 925°F, making the aluminum soft and pliable for extrusion.
Quenching rapidly cools the extruded aluminum, improving its mechanical properties and ensuring dimensional stability. This process can use air, water sprays, or immersion in a water tank.
Common surface treatments include anodizing, powder coating, and painting. These treatments enhance corrosion resistance and aesthetic appeal.
Aluminum extrusions are used for automotive support structures, display stands, seat frames, testing racks, and other components due to their strength and lightweight nature.
Stretching corrects distortions in the extruded profiles, ensuring straightness and alignment. It typically involves elongating the profiles by 2-4% to meet customer specifications.
