Aluminum profiles are essential components in modern engineering, architecture, transportation, and countless other industries. Their unique blend of lightweight strength, corrosion resistance, and versatile design options make them indispensable for a wide array of applications. This article explores the different types of aluminum profiles, delves into their manufacturing processes, highlights their properties, and examines their diverse applications. By understanding the range of aluminum profiles available, designers, engineers, and manufacturers can make informed choices that optimize performance and efficiency.
Aluminum profiles, often referred to as extrusions, are shapes made by forcing aluminum alloy through a die to create objects of a fixed cross-sectional profile. This process allows for the creation of complex shapes that are both lightweight and strong. The adaptability of aluminum profiles stems from the material's inherent properties, including its high strength-to-weight ratio, excellent corrosion resistance, and ease of fabrication.
Aluminum is favored for profiles due to several key characteristics:
- Lightweight: About one-third the weight of steel, making it ideal for applications where reducing mass is critical.
- Corrosion Resistant: Naturally forms a protective oxide layer, reducing maintenance needs.
- Malleable and Ductile: Easily extruded into complex shapes.
- Recyclable: Can be recycled repeatedly without loss of properties.
- Conductive: Good electrical and thermal conductivity.
The extrusion process is central to creating aluminum profiles. It involves heating an aluminum billet and forcing it through a shaped die using a hydraulic press. The resulting profile takes on the cross-sectional shape of the die. After extrusion, profiles are cooled, stretched to straighten, and cut to length. They may also undergo additional treatments such as anodizing, powder coating, or machining.
- 6063 Alloy: Known for its excellent finish and suitability for architectural applications.
- 6061 Alloy: Offers higher strength, used in structural and engineering applications.
- 6082 Alloy: Provides good mechanical properties and weldability.
Aluminum profiles can be categorized based on their shapes, functions, and applications. The main types include:
Solid profiles have no hollow spaces and are commonly used for structural frameworks, supports, and reinforcement.
- Angles: L-shaped profiles used for edge protection, framing, and bracing.
- Flat Bars: Rectangular sections for general purpose supports.
- T-Bars: T-shaped, often used for joining or supporting structures.

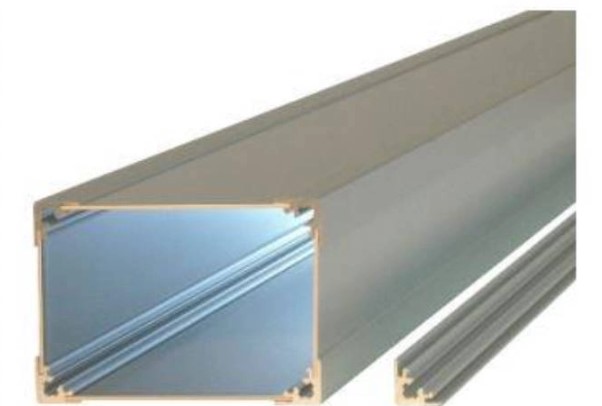

Hollow profiles contain one or more voids, making them lighter while retaining strength.
- Tubes: Circular, square, or rectangular tubes for frames, handrails, and conduits.
- Channels: U-shaped, used for tracks, guides, and cable management.
- Box Sections: Enclosed rectangular or square shapes for load-bearing applications.
Custom profiles are designed for specific applications, often featuring intricate geometries.
- Heat Sinks: Finned profiles for dissipating heat in electronics.
- Window and Door Frames: Profiles with multiple chambers for insulation and strength.
- Rail and Track Profiles: Special shapes for sliding doors, conveyors, or curtain walls.
Modular profiles, such as T-slot and V-slot systems, are designed for rapid assembly and reconfiguration.
- T-Slot Profiles: Allow for easy attachment of accessories, commonly used in machine frames, workstations, and automation systems.
- V-Slot Profiles: Feature a V-shaped groove for linear motion applications.
These profiles focus on aesthetics as well as function, often used in building facades, trims, and interior design.
- Mouldings: Decorative edges and trims.
- Handrails and Balustrades: Profiles designed for safety and style.
- Curtain Wall Systems: Structural and decorative profiles for modern building exteriors.
Understanding the properties of aluminum profiles is crucial for selecting the right type for a given application.
Aluminum profiles offer high strength while remaining lightweight, making them ideal for applications where reducing mass is important, such as in transportation and aerospace.
Aluminum naturally forms an oxide layer that protects it from corrosion, even in harsh environments. This property is enhanced by surface treatments like anodizing.
Aluminum is an excellent conductor of heat and electricity, making it suitable for heat sinks, electrical busbars, and more.
Profiles can be easily cut, drilled, and machined, allowing for flexible fabrication and assembly.
Aluminum can be recycled indefinitely, making it a sustainable choice for environmentally conscious projects.
The versatility of aluminum profiles is reflected in their broad range of applications across industries.
Aluminum profiles are widely used in building and construction due to their strength, durability, and aesthetic appeal.
- Window and Door Frames: Provide structural support and energy efficiency.
- Curtain Walls: Modern building facades rely on lightweight, strong profiles.
- Partitions and Interior Walls: Modular profiles enable flexible office layouts.
- Roofing and Cladding: Profiles offer weather resistance and design flexibility.
Reducing weight is critical in transportation, making aluminum profiles a preferred choice.
- Automotive Frames and Components: Lightweight profiles improve fuel efficiency.
- Railway Carriages: Structural and decorative profiles for car bodies.
- Aerospace Structures: High-strength, lightweight profiles for aircraft frames and interiors.
- Marine Applications: Corrosion-resistant profiles for boats and ships.
Aluminum profiles are integral to modern manufacturing and automation systems.
- Machine Frames: Modular T-slot systems for rapid assembly and reconfiguration.
- Conveyor Systems: Profiles form the backbone of conveyor frames.
- Workstations and Benches: Customizable profiles for ergonomic workspaces.
- Safety Guards and Enclosures: Profiles create protective barriers around machinery.
Aluminum's conductivity and heat dissipation make it ideal for electronic applications.
- Heat Sinks: Finned profiles dissipate heat from electronic components.
- Enclosures: Profiles form protective housings for sensitive electronics.
- Busbars and Connectors: Conductive profiles distribute electrical power.
Aluminum profiles are increasingly used in solar and wind energy systems.
- Solar Panel Frames: Lightweight, corrosion-resistant profiles support solar modules.
- Mounting Structures: Profiles anchor solar panels and wind turbines.
- Cable Trays: Profiles manage and protect wiring in renewable installations.
The adaptability and aesthetics of aluminum profiles make them popular in modern furniture.
- Modular Furniture: Profiles allow for customizable desks, shelves, and cabinets.
- Partitions and Screens: Profiles create flexible room dividers.
- Lighting Fixtures: Decorative profiles house LED strips and lamps.
Aluminum profiles are also found in a variety of niche applications.
- Sports Equipment: Profiles form the frames of bicycles, gym equipment, and more.
- Medical Devices: Lightweight, hygienic profiles for hospital beds and equipment.
- Retail Displays: Custom profiles for shelving, signage, and exhibition stands.
Selecting the right aluminum profile involves several key considerations:

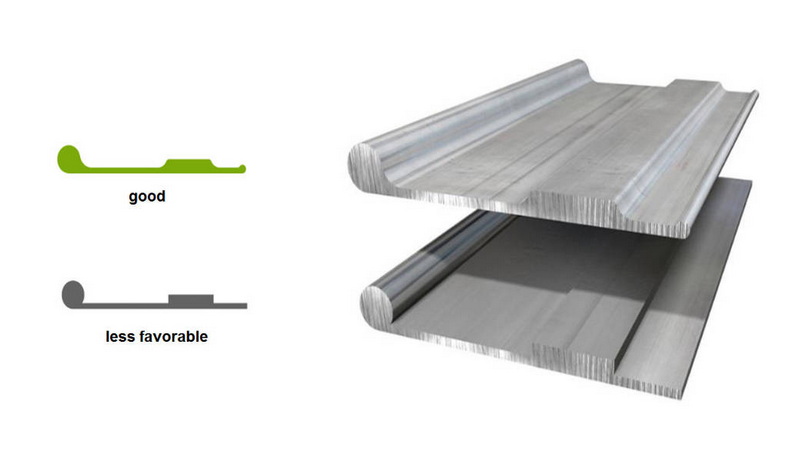

The cross-sectional shape determines the profile's strength, weight, and suitability for specific applications. Complex shapes may require custom dies and higher production costs.
Different alloys offer varying balances of strength, corrosion resistance, and machinability. The intended application often dictates the best choice.
Surface finishes such as anodizing, powder coating, or painting enhance appearance, durability, and corrosion resistance.
Profiles can be joined using mechanical fasteners, welding, or adhesive bonding. Modular systems like T-slot profiles allow for rapid assembly without specialized tools.
Custom profiles may involve higher upfront costs for die creation, but can offer long-term savings through optimized performance and reduced material usage.
Advancements in extrusion technology and materials science continue to expand the possibilities for aluminum profiles.
Modern manufacturing techniques allow for tighter tolerances and more complex shapes, enabling profiles to meet demanding specifications.
Combining aluminum with other materials, such as plastics or composites, can enhance performance in specific applications.
Recycling and energy-efficient production methods are reducing the environmental impact of aluminum profiles.
Integration of sensors, wiring channels, and other features into profiles is enabling new applications in smart buildings and automation.
Aluminum profiles are a cornerstone of modern engineering and design, offering unmatched versatility, strength, and sustainability. From towering skyscrapers to precision machinery, their applications are as diverse as the industries they serve. Understanding the different types of aluminum profiles and their specific uses empowers designers, engineers, and manufacturers to create innovative, efficient, and sustainable solutions. As technology advances, the role of aluminum profiles will only continue to grow, shaping the built environment and the products we rely on every day.
When selecting an aluminum profile, consider the required strength, weight, corrosion resistance, and the specific application. The profile's shape, alloy, surface treatment, and joining method are also important. For modular or frequently reconfigured systems, T-slot profiles offer flexibility.
Custom aluminum profiles are created by designing a unique die that shapes the aluminum during extrusion. The process involves heating an aluminum billet and forcing it through the die. After extrusion, the profile can be cut, machined, and finished to meet specific requirements.
Modular profiles, such as T-slot systems, enable rapid assembly and reconfiguration without welding or specialized tools. They are ideal for prototyping, automation systems, and workspaces that require frequent changes or customization.
Yes, aluminum profiles are well-suited for outdoor use due to their natural corrosion resistance. Surface treatments like anodizing or powder coating further enhance durability, making them suitable for building facades, solar panel frames, and marine applications.
Aluminum profiles are highly sustainable. Aluminum can be recycled indefinitely without loss of properties, and many profiles are made from recycled material. The lightweight nature of aluminum also reduces energy consumption in transportation and installation.
