Extruded Aluminum Profiles vs Cast Aluminum Profiles: Key Differences Explained

Views: 222     Author: Astin     Publish Time: 2025-07-09      Origin: Site

Inquire

facebook sharing button
whatsapp sharing button
sharethis sharing button

Content Menu

Introduction

What Are Aluminum Profiles?

The Extrusion Process

>> How Extruded Aluminum Profiles Are Made

>> Advantages of Extruded Aluminum Profiles

>> Limitations of Extruded Aluminum Profiles

The Casting Process

>> How Cast Aluminum Profiles Are Made

>> Advantages of Cast Aluminum Profiles

>> Limitations of Cast Aluminum Profiles

Key Differences Between Extruded and Cast Aluminum Profiles

>> 1. Manufacturing Process

>> 2. Mechanical Properties

>> 3. Design Flexibility

>> 4. Surface Finish and Appearance

>> 5. Size and Scale

>> 6. Cost Considerations

Applications of Extruded Aluminum Profiles

Applications of Cast Aluminum Profiles

Comparing Strength and Durability

>> Extruded Aluminum Profiles

>> Cast Aluminum Profiles

Surface Finishing and Treatments

Environmental Impact and Sustainability

Choosing Between Extruded and Cast Aluminum Profiles

Conclusion

FAQ

>> 1. What are the main differences between extruded and cast aluminum profiles?

>> 2. Which is stronger: extruded or cast aluminum profiles?

>> 3. Can both extruded and cast aluminum profiles be recycled?

>> 4. What applications are best suited for cast aluminum profiles?

>> 5. How do surface finishes compare between extruded and cast aluminum profiles?

Introduction

Aluminum is one of the most versatile and widely used metals in modern manufacturing, construction, and engineering. Its lightweight nature, corrosion resistance, and excellent mechanical properties make it a favorite material for countless applications. Among the various forms in which aluminum is processed, extruded and cast aluminum profiles stand out as two of the most prominent. Each method produces aluminum profiles with distinct characteristics, advantages, and limitations, making them suitable for different uses.

Understanding the differences between extruded and cast aluminum profiles is crucial for engineers, designers, manufacturers, and anyone involved in selecting materials for specific projects. This article delves deep into the processes, properties, applications, and key differences between extruded and cast aluminum profiles. By the end, you'll have a comprehensive understanding of which type is best suited for your needs, along with answers to common questions about these materials.

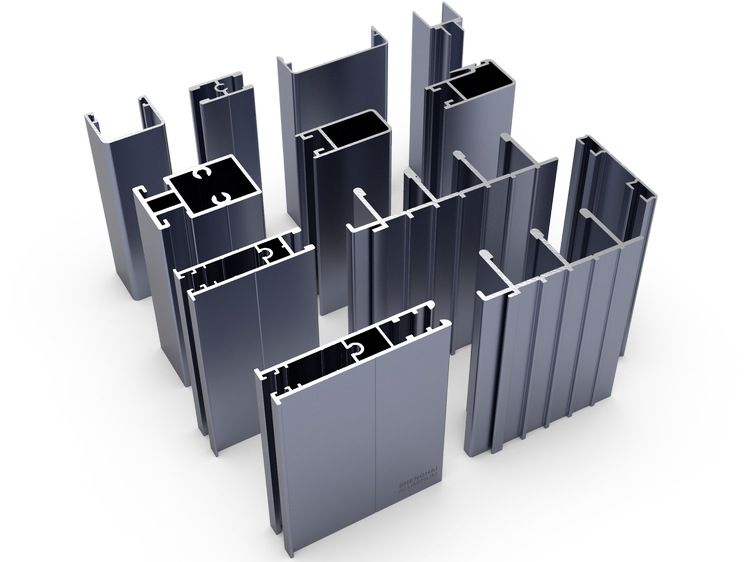

Extruded Aluminum Profiles vs Cast Aluminum Profiles Key Differences Explained

What Are Aluminum Profiles?

Aluminum profiles are long, uniform sections of aluminum that are shaped to specific cross-sectional designs. These profiles are used in a wide range of industries, including construction, automotive, aerospace, electronics, and furniture. The two primary methods for creating aluminum profiles are extrusion and casting. Each method imparts unique characteristics to the finished product, influencing its performance, cost, and suitability for various applications.

The Extrusion Process

How Extruded Aluminum Profiles Are Made

Extrusion is a process where a billet of aluminum is forced through a die with a specific cross-sectional shape. The result is a continuous length of aluminum with the desired profile. The process can be broken down into several steps:

- Heating the Billet: The aluminum billet is heated to a temperature that makes it malleable but not molten.

- Forcing Through the Die: The heated billet is pushed through a steel die using a hydraulic press.

- Cooling and Cutting: The extruded profile is cooled, usually with water or air, and then cut to the required lengths.

- Finishing: Additional treatments such as anodizing, painting, or machining may be applied to enhance the surface or mechanical properties.

Advantages of Extruded Aluminum Profiles

- Complex Cross-Sections: Extrusion allows for the creation of intricate and complex shapes that would be difficult or impossible to achieve with other methods.

- Consistent Quality: The process produces profiles with uniform cross-sections and consistent mechanical properties along their lengths.

- High Strength-to-Weight Ratio: Extruded profiles often have superior strength-to-weight ratios, making them ideal for structural applications.

- Customization: It's relatively easy to change dies and produce custom shapes for specific projects.

Limitations of Extruded Aluminum Profiles

- Size Limitations: The size of the profile is limited by the capacity of the extrusion press.

- Initial Die Cost: Creating custom dies can be expensive, especially for small production runs.

- Surface Finish: While generally good, the surface finish may require additional processing for applications where aesthetics are critical.

The Casting Process

How Cast Aluminum Profiles Are Made

Casting involves pouring molten aluminum into a mold that defines the desired shape. There are several casting methods, but the most common for profiles are die casting and sand casting.

- Melting the Aluminum: Aluminum is heated until it becomes liquid.

- Filling the Mold: The molten aluminum is poured or injected into a mold.

- Cooling and Solidification: The metal cools and solidifies, taking the shape of the mold.

- Removing the Casting: The solidified profile is removed from the mold, and any excess material is trimmed.

- Finishing: Similar to extrusion, cast profiles may undergo further finishing processes.

Advantages of Cast Aluminum Profiles

- Complex Shapes with Internal Cavities: Casting can produce complex shapes, including those with internal cavities and undercuts, which are challenging for extrusion.

- Large Profiles: Casting is suitable for creating large and bulky profiles that would be difficult to extrude.

- Lower Tooling Costs for Small Runs: For small quantities, casting can be more cost-effective since molds can be reused and are sometimes less expensive than extrusion dies.

Limitations of Cast Aluminum Profiles

- Lower Mechanical Strength: Cast profiles generally have lower mechanical properties compared to extruded profiles due to the presence of porosity and grain structure differences.

- Surface Finish: The surface finish of cast profiles may be rougher and require more post-processing.

- Dimensional Accuracy: Achieving tight tolerances can be more challenging with casting, especially with sand casting.

Cost Comparison of Extruded and Cast Aluminum Profiles

Key Differences Between Extruded and Cast Aluminum Profiles

1. Manufacturing Process

- Extrusion: Involves forcing solid but malleable aluminum through a die.

- Casting: Involves pouring molten aluminum into a mold.

2. Mechanical Properties

- Extruded Profiles: Typically have better mechanical properties due to their grain structure, which aligns along the length of the profile during extrusion.

- Cast Profiles: Usually have lower strength and may contain internal defects like porosity.

3. Design Flexibility

- Extruded Profiles: Allow for complex external shapes but are limited in creating internal cavities.

- Cast Profiles: Can produce both complex external and internal shapes, including hollow sections and undercuts.

4. Surface Finish and Appearance

- Extruded Profiles: Generally have a smoother surface finish, but may still require additional finishing for decorative applications.

- Cast Profiles: Often have a rougher surface that may need more extensive finishing.

5. Size and Scale

- Extruded Profiles: Limited by the size of the extrusion press and die.

- Cast Profiles: Suitable for larger and more massive sections.

6. Cost Considerations

- Extruded Profiles: More economical for large production runs due to the longevity of dies and high throughput.

- Cast Profiles: More cost-effective for small batches or large, complex shapes.

Applications of Extruded Aluminum Profiles

Extruded aluminum profiles are found in a wide range of industries and products, including:

- Construction: Window frames, curtain walls, structural components, handrails, and scaffolding.

- Automotive: Chassis components, roof rails, bumpers, and heat exchangers.

- Aerospace: Aircraft frames, seat tracks, and support structures.

- Electronics: Heat sinks, housings, and enclosures.

- Furniture: Table frames, legs, and decorative trims.

The ability to create lightweight, strong, and precise components makes extruded aluminum profiles indispensable in modern engineering and design.

Applications of Cast Aluminum Profiles

Cast aluminum profiles are chosen for applications where complex shapes, large sizes, or internal cavities are required. Typical uses include:

- Automotive: Engine blocks, transmission housings, and intricate brackets.

- Machinery: Pump housings, gearboxes, and machine bases.

- Consumer Goods: Cookware, lighting fixtures, and hardware.

- Aerospace: Certain engine components and housings.

- Construction: Decorative elements, balusters, and custom architectural features.

Casting is particularly advantageous when the design cannot be achieved through extrusion or when the required volume does not justify the cost of extrusion dies.

Comparing Strength and Durability

Extruded Aluminum Profiles

Extruded profiles generally exhibit higher strength and better fatigue resistance compared to cast profiles. This is due to the alignment of the grain structure during extrusion, which enhances the mechanical properties along the length of the profile. Extruded aluminum can also be alloyed and heat-treated to further improve its strength, making it suitable for structural applications where load-bearing capacity is critical.

Cast Aluminum Profiles

Cast profiles, while versatile in shape, tend to have lower strength and are more susceptible to defects such as porosity and inclusions. These imperfections can act as stress concentrators, reducing the overall durability of the component. However, for non-structural or decorative applications, cast aluminum profiles are often sufficient and provide the necessary design freedom.

Surface Finishing and Treatments

Both extruded and cast aluminum profiles can undergo various surface treatments to enhance their appearance, corrosion resistance, and mechanical properties. Common finishing processes include:

- Anodizing: Creates a protective oxide layer on the surface, improving corrosion resistance and allowing for color customization.

- Powder Coating: Adds a durable, decorative finish available in a wide range of colors and textures.

- Polishing and Buffing: Achieves a smooth, reflective surface, often used for decorative applications.

- Machining: Further refines the profile, adds features, or achieves tighter tolerances.

The choice of surface treatment depends on the intended application, environmental exposure, and aesthetic requirements.

Environmental Impact and Sustainability

Aluminum is highly recyclable, and both extruded and cast profiles can be produced using recycled material. The recycling process requires only a fraction of the energy needed to produce primary aluminum, making it an environmentally friendly choice. Additionally, the long lifespan and corrosion resistance of aluminum profiles contribute to their sustainability in various applications.

Choosing Between Extruded and Cast Aluminum Profiles

Selecting the right type of aluminum profile depends on several factors:

- Design Complexity: If your design requires intricate internal cavities or undercuts, casting may be the better option.

- Mechanical Requirements: For applications demanding high strength and durability, extruded profiles are typically superior.

- Production Volume: Extrusion is more cost-effective for large runs, while casting is suitable for small batches or unique shapes.

- Surface Finish: Extruded profiles generally offer a better starting surface, but both types can be finished to high standards.

- Size: For very large or massive components, casting may be the only viable method.

Carefully evaluating these factors will help you choose the most appropriate aluminum profile for your project.

Conclusion

Both extruded and cast aluminum profiles have unique advantages and limitations. Extruded profiles excel in strength, consistency, and the ability to create complex external shapes, making them ideal for structural and high-performance applications. Cast profiles, on the other hand, offer unparalleled design flexibility, especially for shapes with internal cavities or large, bulky sections.

Understanding the differences between these two manufacturing methods allows engineers, designers, and manufacturers to make informed decisions that optimize performance, cost, and manufacturability. Whether you're building a lightweight aircraft frame, a durable automotive component, or an intricate architectural feature, knowing when to use extruded versus cast aluminum profiles is key to achieving the best results.

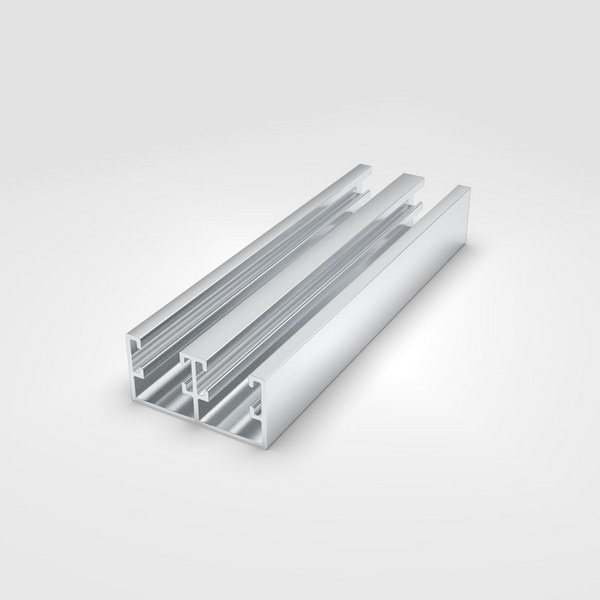

Advantages of Extruded Aluminum for Structural Uses

FAQ

1. What are the main differences between extruded and cast aluminum profiles?

Extruded aluminum profiles are made by forcing heated aluminum through a die to create long, continuous shapes with consistent cross-sections. Cast aluminum profiles are formed by pouring molten aluminum into molds, allowing for more complex shapes, including internal cavities. Extruded profiles generally offer higher strength and better surface finishes, while cast profiles provide greater design flexibility.

2. Which is stronger: extruded or cast aluminum profiles?

Extruded aluminum profiles are typically stronger than cast profiles due to their aligned grain structure and the ability to use stronger alloys and heat treatments. Cast profiles may have internal defects that reduce their mechanical strength, making them more suitable for non-structural or decorative applications.

3. Can both extruded and cast aluminum profiles be recycled?

Yes, both types of aluminum profiles are fully recyclable. Recycling aluminum saves significant energy compared to producing new material, and recycled aluminum retains the same properties as primary aluminum. This makes both extruded and cast profiles environmentally friendly choices.

4. What applications are best suited for cast aluminum profiles?

Cast aluminum profiles are ideal for applications requiring complex shapes, internal cavities, or large, bulky components. Common examples include engine blocks, pump housings, cookware, and decorative architectural elements. Casting is also preferred for small production runs or when the design cannot be achieved through extrusion.

5. How do surface finishes compare between extruded and cast aluminum profiles?

Extruded aluminum profiles generally have smoother surface finishes straight from the die, making them suitable for applications where appearance matters. Cast profiles often require additional finishing processes to achieve a similar level of smoothness due to the rougher surfaces produced by molds. Both types can undergo anodizing, powder coating, or polishing for enhanced appearance and protection.
