Aluminum profile bending is a critical process in industries ranging from construction and aerospace to automotive and consumer electronics. This technique transforms extruded or flat aluminum profiles into curved or angular shapes while maintaining structural integrity. With the growing demand for lightweight, durable, and aesthetically pleasing components, understanding the best methods for aluminum profile bending is essential. This comprehensive guide explores the key techniques, their applications, design considerations, and emerging trends, providing actionable insights for engineers and manufacturers.
Aluminum profile bending combines material science and precision engineering to reshape profiles without compromising their mechanical properties. The process leverages aluminum's inherent advantages, such as its high strength-to-weight ratio, corrosion resistance, and recyclability. From curved architectural facades to ergonomic automotive frames, bent aluminum profiles enable innovative designs that meet both functional and aesthetic requirements.
- Lightweight: Reduces overall component weight by 30–50% compared to steel.
- Ductility: Certain aluminum alloys (e.g., 6063-T5) allow bends up to 180° without cracking.
- Sustainability: Aluminum retains 95% of its properties after recycling.

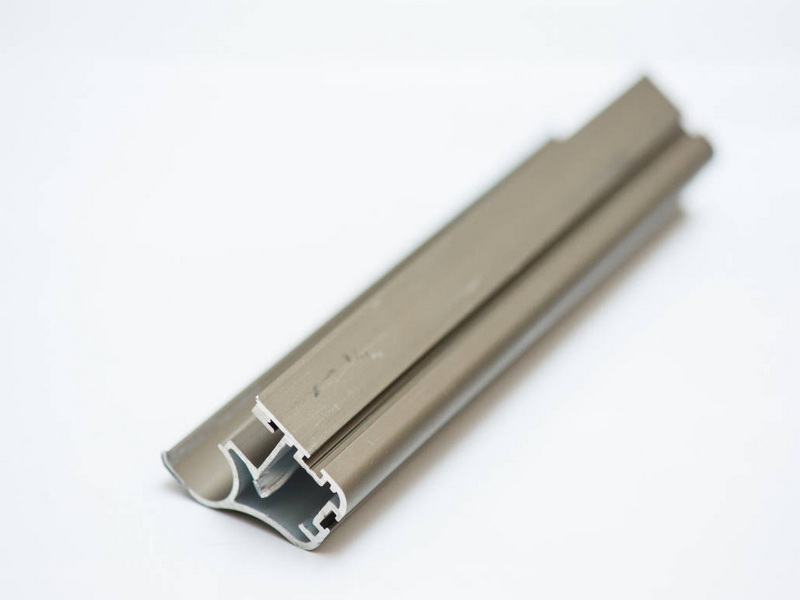

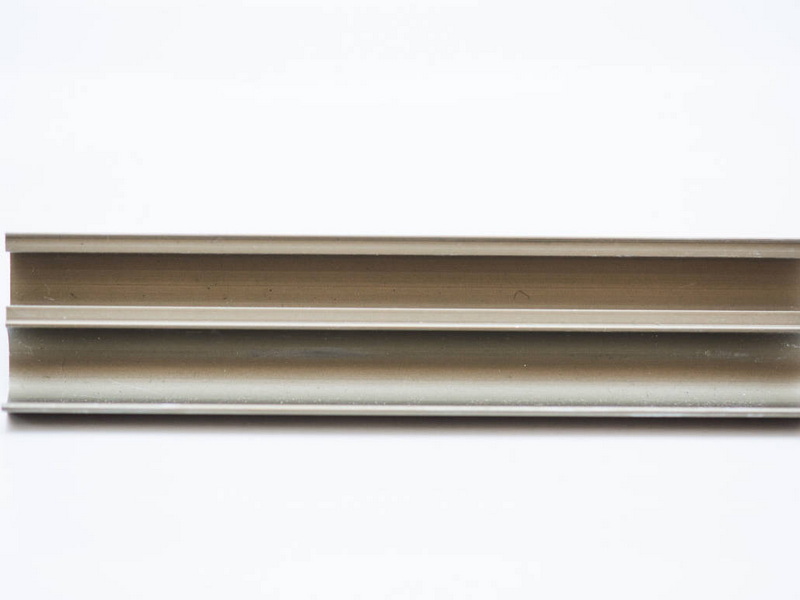

Complex profiles with hollow sections or asymmetrical designs require specialized tooling to prevent collapse during bending. For example:
- Hollow profiles: Often need internal mandrels to maintain shape.
- Thick-walled profiles: Require higher bending forces and gradual radius adjustments.
Alloy | Temper | Elongation (%) | Typical Applications |
6061 | T6 | 8–10 | Structural components |
6063 | T5 | 12–15 | Architectural frames |
5052 | H32 | 10–12 | Marine and automotive parts |
Softer tempers (e.g., T1 or O-temper) improve formability, while harder tempers (e.g., T6) prioritize strength.
- Minimum Bend Radius: Typically 1–3 times the profile's wall thickness, depending on the alloy.
- Tight Radii: Require incremental bending steps to avoid stress concentrations.
Process:
- The aluminum profile passes through a series of adjustable rollers that progressively apply pressure to achieve the desired curvature. 4-roll systems add a top roller for enhanced control over asymmetrical profiles.
Applications:
- Large-radius curves (e.g., conveyor systems, arched window frames).
- Prototyping due to quick setup and low tooling costs.
Technical Considerations:
- Roll Alignment: Misalignment ≥0.5 mm can cause twisting.
- Springback Compensation: Overbend by 2–5° to account for aluminum's elastic recovery.
Case Study:
- A manufacturer of solar panel mounting systems used 4-roll bending to create U-shaped aluminum rails with a 2-meter radius, achieving ±0.3 mm tolerance across 10,000 units.
Process:
- A hydraulic arm clamps the profile against a rotating die, while a pressure die prevents wrinkling on the inner bend radius. CNC-controlled systems enable multi-plane bending for complex geometries.
Advantages:
- Achieves tight radii (up to 1.5× wall thickness).
- Maintains ovality below 3% for hollow profiles.
Limitations:
- High tooling costs for custom dies.
- Limited to profiles with consistent cross-sections.
Industry Example:
- Automotive manufacturers use rotary draw bending for exhaust systems and seat frames, where precision is critical for assembly compatibility.
Process:
- The profile is clamped at both ends and stretched beyond its yield point (typically 2–5% elongation) while being wrapped around a die. This method minimizes cross-sectional distortion.
Applications:
- Aerospace wing ribs.
- Curved storefront systems with glass facades.
Critical Parameters:
- Stretch Force: 70–90% of the material's tensile strength.
- Die Temperature: Heated dies (150–200°C) reduce residual stresses in high-strength alloys like 7075.
Technology Overview:
- A CNC-controlled ceramic die moves in 6 axes, enabling 3D bends without traditional tooling. Real-time laser scanning adjusts the bending path to ±0.1 mm accuracy.
Benefits:
- No dedicated dies required.
- Capable of producing variable radii in a single operation.
Use Case:
- A robotics company used free-form bending to create serpentine cooling channels for AI server racks, reducing assembly time by 40%.
A focused laser heats specific areas of the profile to 300–400°C, locally reducing yield strength. This allows tighter bends in thick profiles (up to 12 mm wall thickness) with 20% less force.
Combining bending with wire-arc additive manufacturing (WAAM) enables the creation of topology-optimized structures. For example:
1. Bend base profiles into skeletal shapes.
2. Deposit aluminum alloy layers at stress points.
Result: 15% weight reduction in crane arms compared to traditional methods.
Machine learning algorithms analyze historical bending data to:
- Predict springback with 98% accuracy.
- Optimize roller positions in real time.
- Reduce scrap rates by up to 30%.

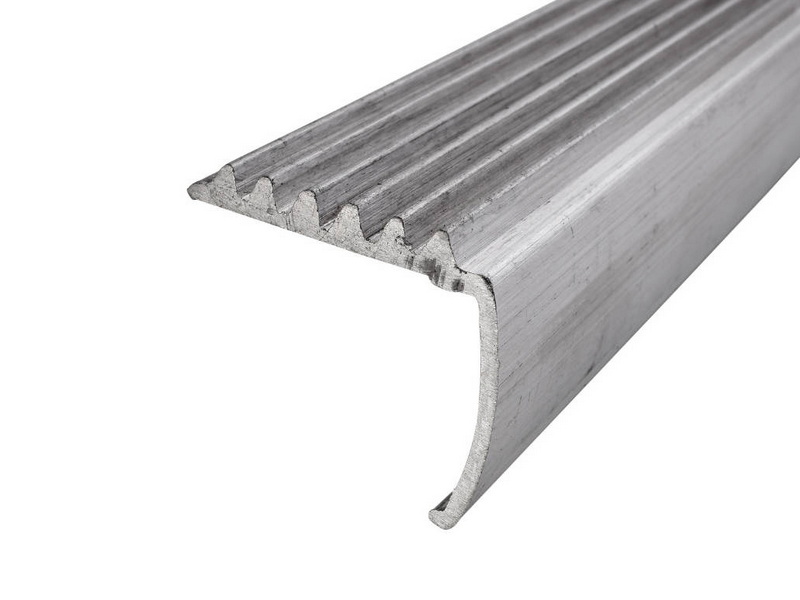

- Symmetry: Balanced cross-sections reduce uneven stress distribution.
- Corner Radii: Maintain ≥2× wall thickness to prevent cracking.
- Grooves: Add longitudinal grooves to control bending locations.
Treatment | Purpose | Application Stage |
Age Hardening | Restores strength after bending | Post-bending |
Shot Peening | Reduces surface stresses | Post-bending |
Anodizing | Enhances corrosion resistance | Post-bending |
- Commercial: ±1.5° angular tolerance, ±2 mm/m linear.
- Aerospace: ±0.5° angular tolerance, ±0.3 mm/m linear.
Challenge | Solution |
Springback | Overbend by calculated angle; use stress-relieving alloys (e.g., 6061-O) |
Surface Scratching | Apply PTFE-coated dies; use lubricants with extreme pressure additives |
Wall Collapse | Insert polyurethane mandrels; reduce bending speed by 50% |
Residual Stress | Perform heat treatment at 250°C for 1–2 hours |
Aluminum profile bending is a sophisticated interplay of material science, machinery, and design intelligence. While traditional methods like roll bending and rotary draw remain industry staples, innovations such as AI-driven free-form bending and laser-assisted techniques are redefining precision and efficiency. By adhering to alloy-specific guidelines and leveraging advanced technologies, manufacturers can achieve bends with tolerances under 0.1 mm while minimizing waste. As industries increasingly prioritize lightweighting and sustainable manufacturing, aluminum profile bending will continue to be a cornerstone of modern engineering.
Yes, but only with proper annealing (heating to 345°C for 6061 alloy) to eliminate work hardening. Repeated bending without annealing risks cracking.
Thin walls (≤3 mm) suit stretch or free-form bending, while thick walls (≥6 mm) often require roll bending with pre-heating.
AutoForm, COPRA RF, and Altair HyperForm are widely used for predicting springback and optimizing tool paths.
Yes, standards like AMS 2771 (aerospace) and ASTM B221 (general industry) define acceptable tolerance ranges.
Rotary draw bending uses heavy-viscosity oils, while free-form bending often employs dry-film lubricants to avoid contaminating CNC components.
