Aluminum extrusion profiles are the backbone of modern modular construction, automation, and industrial framing systems. Their ability to be easily assembled, reconfigured, and adapted using a wide variety of accessories makes them a favorite across manufacturing, robotics, architecture, and DIY communities. But how exactly do you connect aluminum extrusion profiles with accessories to create strong, reliable, and flexible structures? This comprehensive guide explores the core principles, common methods, and best practices for connecting aluminum extrusion profiles, ensuring both structural integrity and ease of assembly.

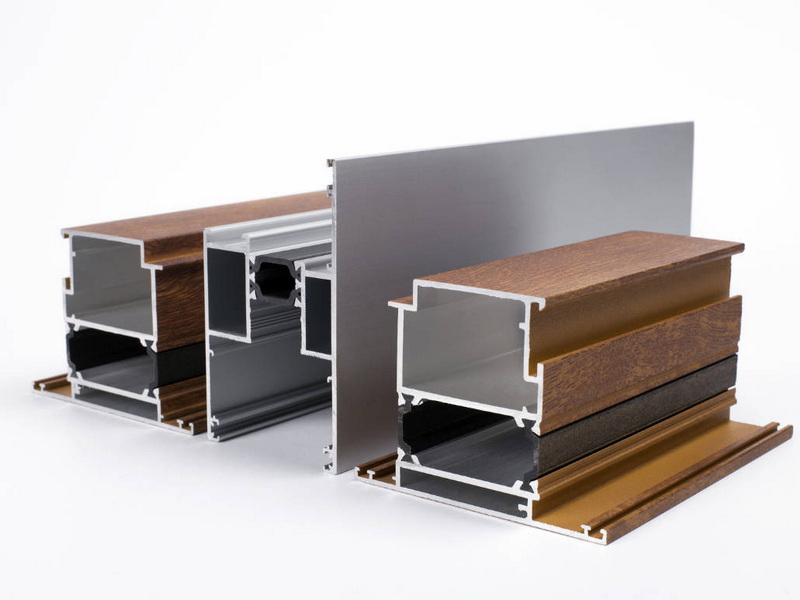

Aluminum extrusion profiles are long, cross-sectionally consistent pieces made by forcing aluminum through a shaped die. The most common industrial type is the T-slot profile, which features one or more longitudinal slots that accept specialized fasteners and accessories. These slots allow for modular construction, enabling users to build frames, enclosures, workstations, and more with minimal tools and no welding[4][5].
- Modularity: Profiles can be cut, joined, and reconfigured as needed.
- Strength-to-Weight Ratio: Aluminum offers excellent structural strength while remaining lightweight.
- Corrosion Resistance: Anodized or treated surfaces resist oxidation and wear.
- Aesthetic Appeal: Clean lines and customizable finishes suit industrial and architectural applications.
- Compatibility: A wide range of accessories and connectors are available for almost any design requirement[4].
Accessories are essential for transforming individual aluminum profiles into functional assemblies. They serve to:
- Connect profiles at various angles and orientations.
- Attach panels, doors, casters, and other hardware.
- Provide structural reinforcement.
- Enhance appearance and safety (e.g., end caps, cover strips).
- Enable movement or adjustment (e.g., hinges, handles).
Accessories are typically made from aluminum, steel, zinc, or high-strength plastics, and are designed for quick, tool-based installation without the need for welding or complex machining[4][5].
There are numerous ways to connect aluminum extrusion profiles, each with its own advantages and ideal use cases. The following sections outline the most widely used methods, drawing on industry best practices and the latest accessory innovations.
Built-in connectors are designed to fit inside the profile slots, creating strong, concealed joints. They are often used for 90° connections and are prized for their clean appearance and high strength. Installation typically involves sliding the connector into the slot and securing it with set screws or bolts[5].
Advantages:
- Hidden, tamper-resistant connection.
- High structural integrity.
- Minimal visual disruption.
Applications: Frame corners, enclosures, machinery bases.
Angle brackets are external connectors that join profiles at fixed angles—most commonly 90°, but also 45° and 135°. They are attached to the profiles using T-nuts and bolts, which fit into the slots of the extrusions.
Advantages:
- Simple installation and removal.
- Allows for easy adjustment and repositioning.
- Provides strong, visible reinforcement.
Applications: Frame assembly, shelving, machine guards, support structures[5].
Screw connections involve tapping the ends of the profiles and using bolts (often with access holes) to pull two profiles together. This method is quick, cost-effective, and provides a strong internal connection.
Installation Steps:
- Cut profiles to length with a clean, square end.
- Tap the core hole at the end to be joined.
- Drill an access hole for the hex key, if needed.
- Insert the screw and tighten using an Allen wrench[1][2].
Advantages:
- No external brackets required.
- Strong, vibration-resistant joints.
- Clean appearance.
Applications: Frame corners, modular structures, automation cells[2][3].
Quick connectors are specialized fasteners that allow rapid assembly and disassembly of profiles. They usually require a hole drilled into the extrusion to accommodate the connector barrel, which is then tightened to pull the profiles together.
Advantages:
- Fast installation and removal.
- Strong, reliable joints.
- Minimal slot obstruction.
Applications: Prototyping, temporary structures, frequently reconfigured systems[3].
Universal fasteners, also known as anchor-style or banjo connectors, are traditional internal connectors that fit into pre-drilled holes in the profiles. They provide a concealed, high-strength connection that resists rotation.
Advantages:
- Strong, hidden joints.
- Suitable for various profile series and sizes.
- Prevents twisting and misalignment.
Applications: Machine frames, automation equipment, heavy-duty assemblies[3].
Gussets are triangular plates that reinforce right-angle joints, while corner brackets are L- or T-shaped external connectors. Both are attached using T-nuts and bolts, providing additional strength and stability.
Advantages:
- Reinforces load-bearing joints.
- Easy to install and adjust.
- Accommodates various frame configurations.
Applications: Large frames, tables, workstations, load-bearing structures[3][4].
End face connectors join profiles at their ends, while three-dimensional connectors allow multiple profiles to intersect at a single point (e.g., cube corners).
Advantages:
- Enables complex, multi-axis assemblies.
- Maintains clean lines and minimal protrusions.
- Supports high-strength, multi-profile joints.
Applications: Enclosures, machine bases, multi-level frames[5].
Hinges, handles, locks, and other functional accessories expand the utility of aluminum profile assemblies. Hinges allow for doors and moving parts, while handles facilitate access and manipulation.
Advantages:
- Adds functionality without complex machining.
- Wide variety of sizes and materials.
- Easy to retrofit or upgrade.
Applications: Doors, access panels, machine guards, cabinets[4].
End caps, cover strips, and trims enhance both the appearance and safety of aluminum profile assemblies. They prevent debris ingress, cover sharp edges, and provide a finished look.
Advantages:
- Improves aesthetics.
- Protects against dust and damage.
- Easy to install and replace.
Applications: Furniture, architectural features, cleanroom equipment[4].
To illustrate the practical process, here's a step-by-step guide for a typical T-slot aluminum extrusion connection using internal screws and T-nuts.
- Measure and mark your profiles precisely.
- Use a high-quality saw with an aluminum-specific blade for clean, square cuts.
- Deburr the ends to ensure a snug fit[1].
- Tap the central hole at the end of the profile to accept a connecting screw.
- If using internal connectors, drill an access hole for your hex key as required[1][2].
- Slide the appropriate T-nut or connector into the profile slot.
- Position it at the desired connection point.
- Bring the profiles together, ensuring all slots and faces are aligned.
- Insert the connecting screw through the access hole into the tapped end, or secure external brackets with bolts.
- Use an Allen wrench or screwdriver to tighten the connectors securely.
- Check for alignment and adjust as necessary.
- Add end caps, cover strips, or trims for a finished look[4].
Connection Method | Strength | Appearance | Ease of Assembly | Adjustability | Typical Use Cases |
Built-in Connectors | High | Hidden | Moderate | Low | Corners, frames, enclosures |
Angle Brackets | Medium | Visible | Easy | High | Frames, supports, shelving |
Screw Connections | High | Hidden | Moderate | Low | Automation, modular frames |
Quick Connectors | High | Minimal | Very Easy | High | Prototyping, temporary structures |
Universal Fasteners | High | Hidden | Moderate | Low | Heavy-duty, industrial assemblies |
Gussets/Corner Brackets | Very High | Visible | Easy | High | Load-bearing, large frames |
End Face/3D Connectors | High | Hidden | Moderate | Low | Multi-axis, complex assemblies |
Hinges/Handles | Varies | Functional | Easy | High | Doors, panels, access points |
- Plan Your Assembly: Map out your frame or structure and choose the most suitable connectors for each joint.
- Use Quality Tools: Clean, precise cuts and properly tapped holes ensure strong, reliable connections.
- Match Accessories to Profile Series: Ensure compatibility between connectors, fasteners, and profile slot sizes.
- Tighten Securely, but Don't Over-Torque: Excessive force can strip threads or deform profiles.
- Consider Future Adjustments: Use adjustable or quick-release connectors where reconfiguration may be needed.
- Finish with Protective Accessories: End caps and cover strips not only improve appearance but also enhance safety and longevity[4][5].
For joining profiles end-to-end (linear connections), use link connectors that slide into the slots of both profiles and are tightened in place. This method is ideal for creating longer spans or extending existing frames[4].
Specialized hinges, turning plates, and articulated brackets allow profiles to be joined at variable angles, supporting applications like adjustable arms, rotating fixtures, or custom machinery[5].
For high-load or vibration-prone environments, use heavy-duty brackets, high-strength screws, and reinforced gussets. Select fasteners with locking features to prevent loosening over time[2][3].
- T-Nuts and Bolts: The foundation of most assemblies, available in various shapes and sizes for different profile slots[4].
- Hammerhead Nuts: Slide into the slot and lock in place when tightened.
- Sliding Nuts: Allow for flexible positioning along the slot.
- Joint Bolts: For internal connections, especially in frames with hidden joints.
- Sunk Screws: Used with door stoppers, knobs, and other accessories.
- Flange Nuts: Provide extra surface area for load distribution.
- Spring Fasteners: Enable quick, tool-less connections for lightweight assemblies.
Aluminum extrusion profiles and their accessories are used in:
- Industrial Automation: Machine frames, conveyor systems, robotic cells.
- Furniture and Retail: Display stands, shelving, modular workstations.
- Architecture and Construction: Partition walls, curtain walls, greenhouses.
- DIY and Makerspaces: Custom enclosures, 3D printer frames, CNC machines.
- Cleanrooms and Laboratories: Equipment racks, safety enclosures, instrument supports.
Connecting aluminum extrusion profiles with accessories is both an art and a science. The modular nature of these systems, combined with a vast array of connectors and fasteners, allows for the creation of robust, flexible, and aesthetically pleasing structures without the need for welding or specialized fabrication. By understanding the strengths and applications of each connection method, and by following best practices in assembly, you can unlock the full potential of aluminum extrusion profiles for any project—industrial, architectural, or creative.
The most common accessories include T-nuts and bolts, angle brackets, built-in connectors, quick connectors, and gussets. These components enable a wide range of connections, from simple right angles to complex multi-axis joints[4][5].
Consider the required joint strength, desired appearance (hidden or visible), adjustability, and compatibility with your profile series. For high-strength or load-bearing joints, use gussets or heavy-duty brackets. For modular or adjustable assemblies, quick connectors or angle brackets are ideal[3][5].
Yes, many accessories such as angle brackets, gussets, and some quick connectors do not require drilling or tapping. They use T-nuts and bolts that slide into the profile slots and are tightened externally, making installation quick and easy[4][5].
Use high-quality connectors and fasteners matched to your profile size and load requirements. Ensure all cuts are clean and square, threads are properly tapped, and fasteners are tightened securely but not over-torqued. Reinforce load-bearing joints with gussets or corner brackets for added strength[1][3].
Yes, one of the main advantages of aluminum extrusion systems is their modularity. Most connections can be loosened, adjusted, or completely reconfigured without damaging the profiles or accessories. This makes them ideal for prototyping, evolving designs, and environments where change is frequent[2][3][5].
