Aluminum profile bars, particularly those designed for structural applications, have become increasingly popular in industrial and commercial construction. Their modularity, corrosion resistance, and impressive strength-to-weight ratio make them a compelling alternative to traditional steel framing in many scenarios. However, the question remains: are aluminum profile bars truly suitable for heavy-duty framing? This comprehensive article explores the engineering, advantages, limitations, and practical applications of aluminum profile bars in heavy-duty framing, providing a detailed analysis for engineers, architects, and decision-makers.

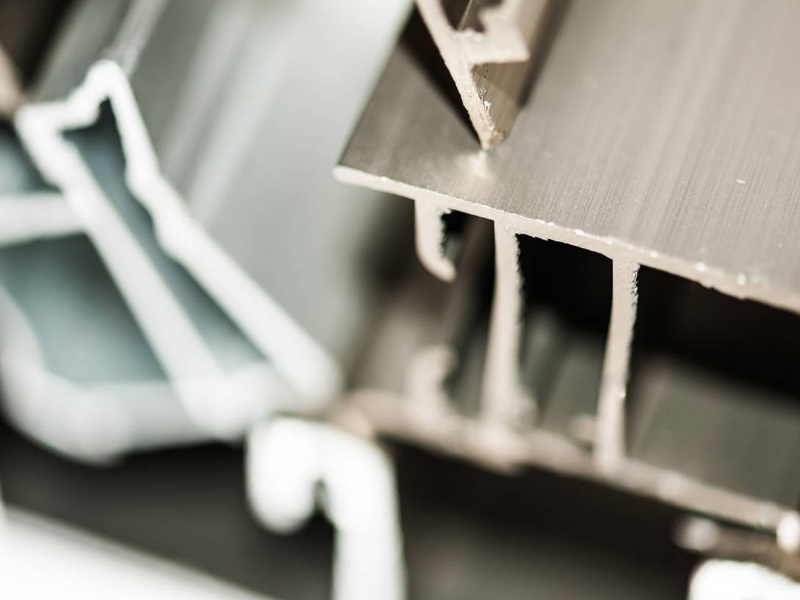

Aluminum profile bars are extruded sections of aluminum, often featuring modular designs like T-slots or grooves, which allow for versatile assembly without welding. These profiles are available in various sizes, cross-sections, and grades, each tailored to specific load requirements and environmental conditions.
- T-slot profiles: Feature a "T" shaped groove for easy attachment of components and connectors.
- Modular profiles: Designed for quick assembly and reconfiguration.
- Heavy-duty industrial profiles: Engineered with thicker walls and reinforced sections for maximum strength.
The selection of a specific profile type depends on the intended application, load requirements, and environmental factors.
Aluminum, while lighter than steel, can be engineered to provide significant load-bearing capacity. The strength of aluminum profiles depends on several factors:
- Alloy and temper: Common alloys like 6061-T6 and 6005-T5 offer tensile strengths ranging from 18,000 to 45,000 psi.
- Profile design: Hollow spaces, ribs, and wall thickness are optimized to maximize rigidity and load distribution.
- Connection methods: The integrity of the frame depends heavily on the quality and design of joints and connectors.
Heavy-duty aluminum profiles, such as those in the 40, 45, and 50 series, are specifically designed for high-load applications, featuring larger cross-sections and reinforced geometries.
One of the standout advantages of aluminum profile bars is their modularity. The T-slot system allows for rapid assembly, reconfiguration, and expansion without specialized tools or welding. This modularity is especially valuable in industrial settings where machinery layouts and processes evolve frequently.
Aluminum naturally forms a protective oxide layer, making it highly resistant to corrosion. Most industrial profiles are further anodized, enhancing their durability and making them suitable for harsh or outdoor environments.
Aluminum's lightweight nature simplifies handling, transportation, and installation. This is particularly advantageous in large-scale projects or where structural weight is a concern, such as mezzanines, elevated platforms, and mobile structures. Reduced weight can also lower transportation costs and decrease the load on supporting foundations, providing economic and engineering benefits.
Aluminum profile bars are widely used in various heavy-duty framing applications across industries. Their versatility and strength make them suitable for:
- Industrial machinery frames: Providing robust support structures for manufacturing equipment.
- Conveyor systems: Lightweight yet strong frames that can be easily modified.
- Workstations and assembly lines: Modular setups that can be reconfigured as needed.
- Automotive and aerospace fixtures: Precision framing for testing and assembly.
- Architectural structures: Lightweight frameworks for facades, canopies, and partitions.
- Cleanroom and laboratory enclosures: Where corrosion resistance and hygiene are critical.
- Robotics and automation cells: Supporting dynamic loads and frequent reconfiguration.
- Material handling equipment: Racks, carts, and lifts that require both strength and mobility.
Industrial Automation:
In modern factories, aluminum profile bars are often used to build machine guards, safety enclosures, and robotic work cells. Their modularity allows engineers to quickly adapt layouts as production needs change, minimizing downtime and maximizing productivity.
Aerospace Assembly:
Aerospace manufacturing demands both high precision and flexibility. Aluminum profiles are commonly used for jigs, fixtures, and assembly frames, where their light weight and corrosion resistance are essential. The ability to quickly reconfigure frames for different aircraft components streamlines production and reduces costs.
Architectural Installations:
Aluminum profiles are increasingly used in architectural applications such as curtain walls, sunshades, and custom partitions. Their sleek appearance, resistance to weathering, and ease of installation make them a preferred choice for both interior and exterior structures.
While aluminum profile bars offer many benefits, there are some limitations to consider:
- Lower absolute strength compared to steel: Aluminum has a lower modulus of elasticity, which means it can flex more under heavy loads. In applications where minimal deflection is critical, steel may still be preferred.
- Cost: Aluminum profiles can be more expensive than steel, especially for heavy-duty grades. However, the reduced labor costs due to ease of assembly and the absence of welding may offset the initial material cost.
- Thermal expansion: Aluminum expands more than steel with temperature changes, which can affect precision assemblies. This must be considered in environments with significant temperature fluctuations.
- Surface damage: Although corrosion-resistant, aluminum can be scratched or dented more easily than steel. Protective coatings or anodizing can mitigate this, but care must be taken during handling and installation.
- Joint integrity: The strength of an aluminum frame is heavily influenced by the quality of its connectors and fasteners. Poorly designed joints can become failure points under heavy loads.
To maximize the performance of aluminum profile bars in heavy-duty framing, consider the following design tips:
- Select the appropriate alloy and temper: Use high-strength alloys like 6061-T6 for critical load-bearing components.
- Optimize profile size and wall thickness: Choose profiles with thicker walls and reinforced sections to handle higher loads.
- Use proper connectors and fasteners: Ensure joints are secure and designed to handle expected loads, using specialized heavy-duty brackets and gussets where necessary.
- Incorporate bracing and gussets: Add structural reinforcements to reduce flexing and increase rigidity, especially in large spans or high-load areas.
- Account for thermal expansion: Design joints and assemblies to accommodate movement, using expansion joints or flexible connectors if needed.
- Perform load calculations: Use engineering software or consult with structural engineers to verify that the selected profiles and connectors can safely support all anticipated loads, including dynamic forces and impact loads.
- Consider vibration and fatigue: In applications with repetitive or dynamic loads, ensure that the frame is designed to withstand fatigue over time.
While both aluminum and steel are widely used for framing, their properties and best-use scenarios differ. Below is a comparison of their key characteristics:
| Feature | Aluminum Profile Bars | Steel Framing |
|---|---|---|
| Weight | Lightweight | Heavy |
| Strength | High (for weight), lower than steel | Very high |
| Corrosion Resistance | Excellent (anodized or coated) | Moderate (requires coating) |
| Modularity | Excellent (T-slot, modular systems) | Limited (welding, bolting needed) |
| Assembly | Fast, no welding required | Slower, welding/bolting required |
| Cost | Higher material cost, lower labor | Lower material, higher labor |
| Maintenance | Low | Moderate to high |
| Customization | Easy, reconfigurable | Difficult, permanent changes |
- When weight reduction is critical: Mobile structures, elevated platforms, or applications where foundation loads must be minimized.
- When rapid assembly or reconfiguration is needed: Prototyping, production lines, or temporary installations.
- When corrosion resistance is essential: Outdoor, marine, or chemical environments.
- When aesthetics and clean appearance are desired: Architectural features, cleanrooms, or public-facing installations.
Proper maintenance can extend the life of aluminum framing systems:
- Regular cleaning: Remove dirt and debris to prevent surface damage and maintain appearance.
- Inspect joints and connectors: Check for loosening, wear, or corrosion, especially in high-vibration environments.
- Protect from impact: Avoid heavy impacts that can dent or deform profiles. Use protective bumpers or guards where necessary.
- Reapply anodizing or coatings if needed: Maintain corrosion resistance, especially if the frame is exposed to harsh chemicals or outdoor conditions.
- Monitor for fatigue: In applications with repetitive loading, inspect for signs of fatigue or microcracking, particularly at joints and connectors.
Aluminum is highly recyclable, with the recycling process requiring only a fraction of the energy needed to produce new aluminum. This makes aluminum profile bars an environmentally friendly choice for sustainable construction. Many manufacturers offer profiles made from recycled aluminum, further reducing the environmental footprint of your project.
- Energy efficiency: Aluminum's light weight reduces transportation energy costs.
- Reusability: Modular profiles can be disassembled and reused in new projects, minimizing waste.
- Recyclability: Aluminum can be recycled indefinitely without losing its properties.
Recent advancements in extrusion technology, alloy development, and surface treatments have further expanded the capabilities of aluminum profile bars:
- High-strength alloys: Newer alloys offer improved strength and fatigue resistance, making aluminum suitable for even more demanding applications.
- Advanced connectors: Innovative joining systems provide higher load capacities and easier assembly.
- Smart profiles: Integration of cable management, sensors, and other features directly into the profile design.
- Enhanced finishes: Improved anodizing and powder coating techniques offer better protection and a wider range of aesthetic options.
In automated warehouses, aluminum profile bars are used to build the frames for conveyor systems, robotic pickers, and storage racks. Their light weight allows for taller structures without excessive foundation requirements, and their modularity enables rapid reconfiguration as warehouse layouts change.
Aluminum profiles are widely used for mounting solar panels, both on rooftops and in large solar farms. Their corrosion resistance ensures long-term durability in outdoor environments, while their light weight simplifies installation and reduces labor costs.
Exhibition stands and trade show booths often rely on aluminum profiles for their frames. The ability to quickly assemble, disassemble, and reconfigure these structures is invaluable for events that require frequent setup and teardown.
In pharmaceutical and semiconductor manufacturing, cleanrooms require framing systems that are easy to clean, resistant to corrosion, and free from contaminants. Aluminum profiles meet these requirements, and their modularity allows for the creation of custom enclosures and partitions.
As industries continue to demand more flexible, sustainable, and high-performance solutions, the use of aluminum profile bars in heavy-duty framing is expected to grow. Key trends include:
- Integration with automation: Profiles designed to accommodate wiring, sensors, and actuators for smart manufacturing.
- Hybrid structures: Combining aluminum with other materials, such as composites or high-strength plastics, to optimize performance.
- Digital design and fabrication: Use of CAD and simulation tools to optimize profile selection and assembly for specific load cases.
- Sustainable construction: Increased use of recycled aluminum and design for disassembly to support circular economy principles.
Aluminum profile bars are a viable option for heavy-duty framing when selected and designed appropriately. Their strength-to-weight ratio, corrosion resistance, and modularity offer significant advantages over traditional materials. However, understanding their limitations and applying proper design principles is crucial to ensure performance and longevity in demanding applications. With ongoing innovations in materials and assembly technology, aluminum profile bars are poised to play an even greater role in the future of industrial and architectural framing.
Yes, when using high-strength alloys and heavy-duty profiles, aluminum bars can support significant loads. Proper design and selection of connectors are essential to ensure structural integrity.
Absolutely, anodized aluminum profiles resist corrosion and are suitable for outdoor use, even in harsh environments such as marine or industrial settings.
Aluminum profiles tend to be more expensive in terms of material cost, but their lightweight nature, ease of assembly, and corrosion resistance can offset costs in many applications by reducing labor and maintenance expenses.
Regular cleaning, inspection of joints, and protection from impacts help maintain aluminum framing. Occasional reapplication of protective coatings may be necessary in aggressive environments.
Yes, the modular nature of aluminum profiles allows for easy customization and reconfiguration. Components can be added, removed, or repositioned without specialized tools or welding.
