Aluminum profile brackets and T-slot systems have revolutionized industrial and DIY construction, offering modularity, flexibility, and ease of assembly. However, a common question among engineers, builders, and hobbyists is: "Are all aluminum profile brackets compatible with T-slot systems?" This article provides an in-depth exploration of T-slot aluminum profiles, the nature of brackets, compatibility issues, and best practices for ensuring a reliable connection. We will also address frequently asked questions to clarify common concerns.

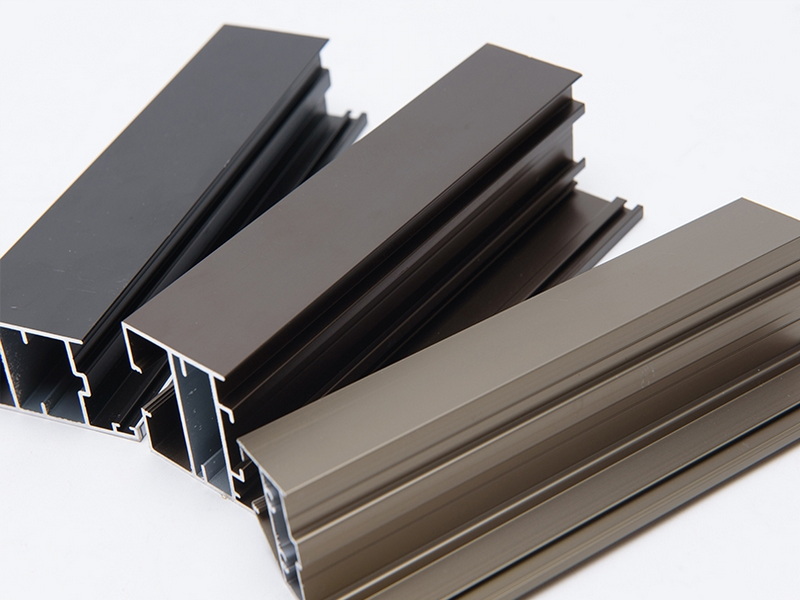

T-slot aluminum profiles are extruded sections of aluminum featuring one or more T-shaped channels (slots) running along their length. These slots are designed to accept specialized fasteners and accessories, allowing for the rapid assembly of frames, workstations, enclosures, and countless other structures. The modularity and adaptability of T-slot systems have made them a staple in manufacturing, automation, robotics, and even home workshops.
- Material: Typically made from 6000 series aluminum alloys, such as 6061 or 6063, known for their strength, corrosion resistance, and machinability.
- Surface Finish: Most profiles are anodized, providing a hard, corrosion-resistant, and aesthetically pleasing surface.
- Slot Sizes and Series: Profiles are categorized by slot width and base dimensions, usually in metric (e.g., 20mm, 30mm, 40mm, 45mm, 50mm) or imperial (inch-based) series.
- Modularity: The T-slot design allows for easy assembly, disassembly, and reconfiguration without welding or specialized tools.
- Industrial machine frames
- Workbenches and assembly lines
- Safety guards and enclosures
- Automation systems
- Display stands and trade show booths
- Furniture and shelving
Aluminum profile brackets are connectors designed to join two or more T-slot profiles at various angles and configurations. They are essential for creating strong, stable, and modular frameworks. Brackets come in numerous shapes and sizes, including:
- Corner Brackets: For 90-degree connections.
- Angle Brackets: For joining at 45°, 135°, or custom angles.
- Joining Plates: Flat plates for connecting profiles side by side or at intersections.
- Foundation and Rotating Brackets: For specialized mounting or movement.
Most brackets are made from die-cast or extruded aluminum, matching the profiles in strength and finish. Surface treatments include anodizing, powder coating, and sandblasting for durability and appearance.
Brackets are typically attached using:
- T-nuts: Special nuts that slide into the T-slot channel and provide threaded holes for bolts.
- Bolts and Screws: Secure the bracket to the profile via the T-nut.
- Self-aligning Connectors: Advanced systems may use connectors that automatically align within the slot for ease of assembly.
Not all aluminum profile brackets are universally compatible with every T-slot system. Compatibility depends on several factors, including slot size, profile series, and regional standards.
- Metric vs. Inch-Based Systems: T-slot profiles are produced in both metric and imperial dimensions. Metric profiles (e.g., 20mm, 30mm, 40mm) are not compatible with inch-based profiles (e.g., 1", 1.5", 2"), and vice versa.
- Slot Width: The slot width (e.g., 6mm, 8mm, 10mm) must match between the bracket and the profile. A bracket designed for an 8mm slot will not fit a 6mm slot.
- Profile Series: Brackets are often designed for specific series (e.g., 20 series, 30 series, 40 series). Using a bracket from one series with a profile from another may result in poor fit or structural weakness.
- Thread Size: The T-nut and bolt thread size must match both the bracket and the profile slot.
- Slot Shape: Some T-slots have unique shapes or internal features that require matching T-nuts and brackets.
- Proprietary Designs: Some manufacturers use proprietary slot shapes or connection methods, making their brackets incompatible with standard profiles.
- Cross-Brand Compatibility: Many leading brands design their brackets and profiles to be compatible with industry standards, but always verify before mixing brands.
- Specialized Brackets: Certain brackets are designed for specific applications or loads and may not be suitable for general use or with other profile types.
Before purchasing brackets, determine the exact series and slot width of your T-slot profiles. This information is usually provided by the manufacturer or can be measured directly.
Select brackets that are explicitly designed for your profile series and slot width. Check the product datasheets for compatibility information.
Ensure that the T-nuts and bolts you use are suitable for both the bracket and the profile slot. Mismatched threads or slot sizes can lead to loose connections or damage.
If mixing components from different brands, verify cross-compatibility. Stick to industry-standard profiles and brackets when possible to maximize interchangeability.
Before committing to large-scale assembly, test-fit a bracket with your profile and fasteners to confirm proper engagement and structural integrity.
Metric and inch-based profiles are not interchangeable. Always use brackets and fasteners that match your system's measurement standard.
A bracket for an 8mm slot will not fit a 6mm slot, even if the base dimensions are similar. Double-check all measurements.
Some brands introduce subtle differences in slot shape or depth. Always consult compatibility charts or contact the manufacturer if in doubt.
Thread size and pitch must match between the bracket, T-nut, and bolt. Using mismatched hardware can strip threads or compromise strength.
Not all brackets are designed for high-load applications. Choose brackets rated for your specific structural requirements.
- Plan Your Design: Map out your frame or structure, noting all connection points and required bracket types.
- Source from Reputable Suppliers: Purchase from established brands or suppliers who provide detailed compatibility information.
- Label Components: If working with multiple series or sizes, label your profiles and brackets to avoid confusion during assembly.
- Keep Spare Hardware: Stock extra T-nuts, bolts, and brackets for future modifications or repairs.
- Regularly Inspect Connections: Periodically check all bracketed joints for tightness and wear, especially in high-vibration or load-bearing applications.
- Structural Integrity: Properly matched brackets and profiles ensure strong, reliable connections.
- Ease of Assembly: Compatible components fit together smoothly, reducing assembly time and frustration.
- Modularity and Flexibility: Standardized brackets allow for easy reconfiguration and expansion.
- Aesthetics: Well-matched brackets and profiles create a professional, clean appearance.
- Safety: Secure connections reduce the risk of structural failure or accidents.
While standard brackets cover most applications, some projects require custom or specialized solutions:
- Unique Angles or Loads: Custom brackets can be fabricated for non-standard angles or high-load points.
- Integration with Other Systems: Specialized brackets may be needed to interface with machinery, conveyors, or automation equipment.
- Aesthetic Requirements: Custom finishes or shapes may be desired for architectural or display projects.
In these cases, work closely with your supplier or a qualified fabricator to ensure compatibility with your chosen T-slot profile.
- Check Slot Width: Measure the slot and compare with bracket specifications.
- Inspect for Debris or Damage: Clean the slot and inspect for any deformation.
- Verify Series and Standard: Ensure both bracket and profile are from the same series and measurement standard.
- Tighten All Fasteners: Ensure bolts and T-nuts are fully tightened.
- Use Correct T-Nut Size: Mismatched T-nuts may not provide a secure hold.
- Consider Reinforcing with Additional Brackets: For high-load areas, use multiple brackets or joining plates.
- Slot Alignment: Ensure the slot is clear and the T-nut is oriented correctly.
- Use Drop-In or Spring-Loaded T-Nuts: These can simplify installation in assembled frames.
- Check for Clearance: Plan bracket placement to avoid interference with panels, doors, or moving parts.
- Use Low-Profile Brackets: Where space is limited, opt for compact or flush-mount brackets.
A manufacturer needed to build a modular automation frame using 40x40mm T-slot profiles. By selecting brackets specifically designed for the 40 series with matching 8mm slot width, they ensured rapid assembly and future expandability. Mixing in a bracket from a different series would have resulted in poor fit and compromised strength.
A hobbyist attempted to use leftover brackets from a 30 series profile on a new 20 series project. The brackets were too large, and the T-nuts did not fit the smaller slots, highlighting the importance of matching all components within the same series.
A display company used standardized T-slot profiles and brackets across multiple projects, enabling them to quickly reconfigure booth layouts for different events. By sticking to industry-standard profiles and brackets, they avoided compatibility issues and maximized their investment.
While T-slot aluminum profiles and brackets offer unparalleled modularity and flexibility, not all brackets are universally compatible with every T-slot system. Compatibility hinges on matching slot size, profile series, measurement standard, and fastener type. By carefully selecting brackets and hardware designed for your specific T-slot profiles, you ensure strong, reliable, and safe assemblies that can be easily modified or expanded in the future. Always consult manufacturer specifications, test-fit components, and follow best practices to avoid common pitfalls. With the right approach, T-slot systems can unlock endless possibilities for industrial, commercial, and DIY projects.
No, brackets are generally designed for specific profile series and slot widths. Mixing brackets from different series (e.g., 30 series with 40 series) may result in poor fit, reduced strength, or inability to assemble the components.
No, metric and inch-based T-slot systems are not compatible. The dimensions, slot widths, and fastener sizes differ, so always use components that match your system's measurement standard.
Identify your profile's series (e.g., 20, 30, 40, 45, 50) and slot width (e.g., 6mm, 8mm, 10mm). Select brackets specifically designed for that series and slot size. Consult manufacturer datasheets or compatibility charts if unsure.
Double-check the slot width and series of both the bracket and the profile. Ensure you are not mixing metric and inch-based components. If the issue persists, consult the supplier or manufacturer for guidance.
Many third-party brackets are designed to be compatible with standard T-slot profiles. However, always verify slot width, series, and fastener compatibility before purchasing. When in doubt, source brackets from the same manufacturer as your profiles.
